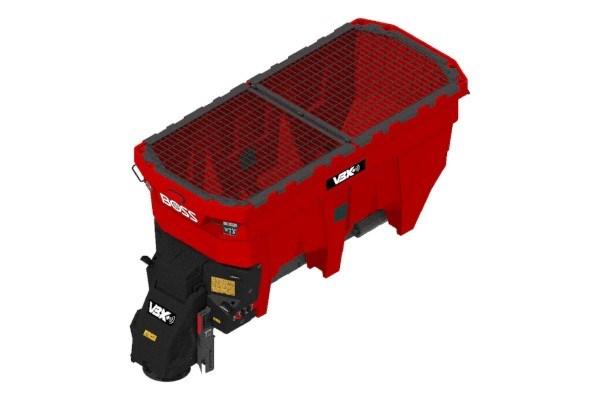

Boss Snowplow VBX+ 3 Yard Pintle

Double tap to zoom



Features

Standard Rate Control

Set spread width and flow rate for precise material distribution, enabling operators to monitor and adjust application levels.

Job Tracking

Track material usage on every job site directly from the controller for customer billing, proof of service, and material supply planning.

Future-Ready

Compatible for future BOSS Smart Connected material management solutions and products

Simplified Material Calibration Adjustment

Enables operator precision in material flow control

Controller Operated LED Lighting

Upgraded LED brake lights, work lights, and selectable patterned beacon lights ensure operators are easily seen.

Easy Access Hatch

Facilitate easier access to the motor, enhancing overall serviceability.

Motor Performance

Upgraded feeder system efficiency and increased spinner power sets new standards beyond the traditional VBX Series.

Remote Grease Zerks

Remote grease zerks for enhanced maintenance and serviceability

Urethane Spinner

for durability and maximum adjustability and spreading efficiency.

Standard Tarp System

VCP tarp with bungee tie-downs comes standard on all VBX spreaders to protect spreading material from the elements.

Reinforced Poly Hopper

Reinforced poly hoppers offer capacities of 1.5, 2, and 3 cubic yards, designed to elevate efficiency and productivity to meet your needs.

Enhanced Pintle Chain System

Provides extended chain life and reduced adjustment frequency with our spring-loaded chain tensioners, offering ease of use and maintenance while accommodating various spreading materials to meet your needs.

VBX+ Overview

Discover the standard smart features, as well as the updated and new features that differentiate it from BOSS' previous VBX line and competitors. Learn More

Spreader Material Guide

Selecting deicing material can be complex and varies widely. Explore the different types of spreader materials suitable for your equipment. Learn More

Specifications

SpecificationsVBX+ 3 Yard Pintle
Capacitycubic yd 3 / cubic m 2.3
Chute ConstructionPolyethylene with Stainless Steel Frame
ConnectivitySmart Compatible
ControlDual Variable Speed Control
DeflectorStandard
Display TypeLCD Display Controller
Feed MechanismPintle/Conveyor Chain
Feed Motor3/4 HP Feed Motor
GearboxPlanetary Worm 137:1
Grease HosesStandard
Hopper Construction3/16" (0.5 cm) Double Wall Polyethylene Hopper
Hopper CoverVCP Tarp w/ integral tie-downs
Hopper Height49 in / 124.46 cm
Hopper Length108 in / 274 cm
Hopper Width48 in / 121.92 cm
Inverted V-BaffleOptional
LED CHSMLStandard
LED Strobe LightsStandard (Two)
LED Work LightsStandard (Two)
Material Conveying Method14" (36 cm) Wide Pintle Chain
Max Feed Rate240 lbs (110 kg) per minute
Minimum Bed Length96 in (243.8 cm)
Spinner15 in (38.1 cm) Diameter Poly Spinner
Spinner AssemblyEasily Removable/Swing Out and Height Adjustable
Spinner Gearmotor1/2 HP Spinner Gearmotor (Located above spinner)
Spreader Overall Length122 in / 309 cm
Spreader SwitchesTwo Dual Function Rocker Switches, E-Stop
Spreading Width8 ft - 40 ft (2.4 m - 12 m) Dry free-flowing material
Tie-Down KitStandard
Top ScreenStandard
Trough11 ga. Stainless Steel
Vehicle Application15,000+ GVWR
Vehicle to Spreader ConnectorCustom Sealed and Overmolded Power & Controls Connector
VibratorOptional
Weight840 lbs / 381 kg
