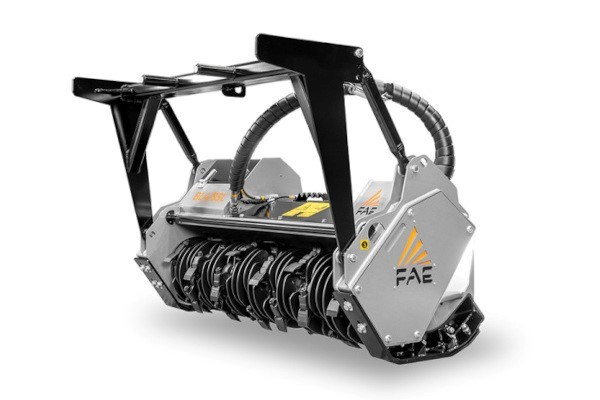

FAE BL4/SSL/SONIC-175

Double tap to zoom



Features

Applications:

  • Forestry maintenance
  • Roadside and railway vegetation maintenance
  • Canals, rivers, ponds overgrowth cleanup
  • Environmental, wildlife habitat protection & food plots
  • Orchard & vineyards maintenance and restoration
  • Maintenance of commercial and residential green areas

Standard Equipment

  • Interchangeable protection chains
  • Enclosed/anti dust machine body
  • Motor enclosed in the frame
  • Interchangeable wear-resistant Hardox® plates
  • Hydraulic hoses for connections
  • Mechanical adjustable guard frame
  • Interchangeable and adjustable support skids
  • 107 cc VT hydraulic piston motor variable displacement (BL4/SSL/VT)
  • 107 cc Sonic hydraulic piston motor electronic control (BL4/SSL/SONIC)
  • Timing belt transmission
  • Anti-shock block Valve with relief and anticavitation valves
  • Interchangeable forged steel rotor shafts
  • Interchangeable flat steel counter blades
  • Sonic System (BL4/SSL/SONIC)
  • Rotor Bite Limiter

Specifications

MODELBL4/SSL/SONIC-175
Engine (hp)90-135
Flow rate (gal/min)32-53
Pressure (PSI)3500-5080
Working width (in)72
Total width (in)84
Weight (lbs)3020
Rotor diameter (in)18.3
Max shredding diameter (in)12
No. blade type BL/MAX32
