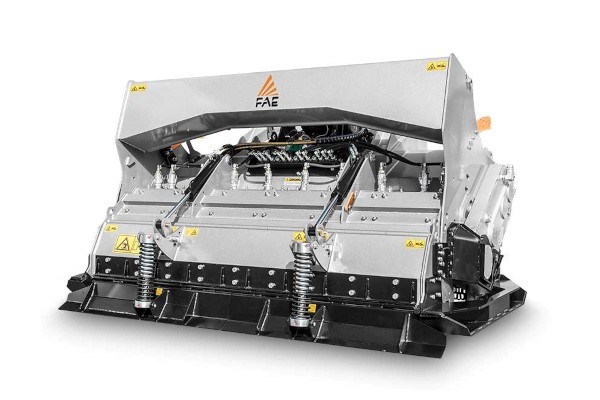

FAE MTL 175

New Equipment / FAE / Construction / Construction PTO Driven Heads / Multitasks for Tractors - Construction / MTL / MTL 175

Double tap to zoom

Features
Specifications

Features

Applications:

Stone crushing
Rock crushing
Asphalt milling
Soil stabilization
Stabilizing stony soil

Standard equipment

Hydraulic rear hood
Adjustable hood grille
FCP wear-resistant clad plates
Interchangeable wear-resistant Hardox® plates
Enclosed, dust-resistant machine body
Variable geometry chamber
Adjustable Hardox® counter blade
Bolt-on interchangeable protection chains
Transmission with side gearbox
Freewheel gearbox
Side PTO shafts with friction clutches
Central PTO shaft with cam clutch
PTO shaft support for machine at rest
Dozing blades with spring system
Interchangeable forged steel rotor shafts
Wear-resistant side plates

Specifications

MODEL	MTL-175
Engine (hp)	150-240
PTO (rpm)	1000
Working width (in)	68
Total width (in)	81
Weight (lbs)	7981
G/3 Rotor diameter (in)	23.4
G/3 Working depth (in) (Max. 1-Max. 2)	6-11
G/3 No. teeth type G/3+STC/3/FP	50+6
ROTOR R (optional)
Rotor diameter (in)	24
Working depth (in) (Max. 1-Max. 2)	6-11
No. picks type R/65+R/65/HD	114+16
