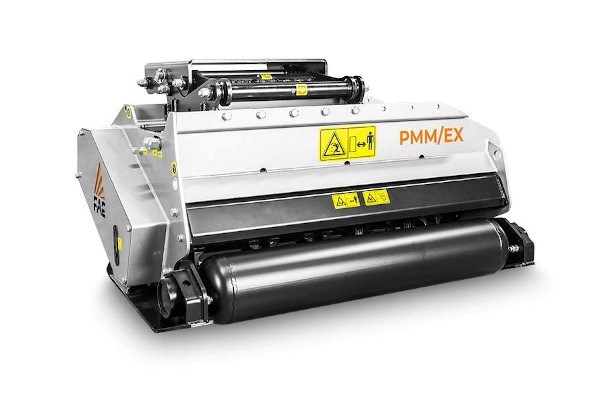

FAE PMM/EX 100

Double tap to zoom



Features

  • Steel counter-blades helps mulch material into a smaller final size
  • Self-cleaning support roller
  • Enclosed machine body
  • Stronger bearings for the support roller



Standard Equipment:

  • Enclosed machine body
  • Welded steel counter-blades
  • Motor enclosed in the frame
  • Bulkhead for hydraulic connections
  • Self levelling protection rubber
  • Transmission with belts
  • 32/65cc variable manual displacement hydraulic piston motor with relief and anticavitation valve
  • Flow control system valve
  • Safety and anticavitation valve
  • Rear hood with mechanical adjustment
  • Adjustable skids
  • Self cleaning rear roller with integrated skids



Options: Customized setting hydraulic motor, Customized attachment bracket with pins, Attachment plate with self levelling device, Possibility to have the rotor equipped with PML hammers or Y-Flails

Specifications

MODEL PMM/EX 100
Flow rate (gal/min) 22-41
Pressure (PSI) 2600-3600
Excavator weight (t) 6-13
Working width (in) 42
Weight (lbs) 1156
Rotor diameter (in) 17.3
Max shredding diameter (in) 3
No. hammers type PMM 12
No. flails type Y/3 12

Data refers to machine as standard set-up. Options may have reflects on weights and dimensions.
The technical data in this catalogue may be altered without prior notice.
