FAE PT-175
Double tap to zoom
PT-175
PT Series
Overview:
The compact, powerful tracked carrier.
Power: 173 hp | TIER 4 FINAL/STAGE V
Available in the following versions: PT175 - Tier 4F

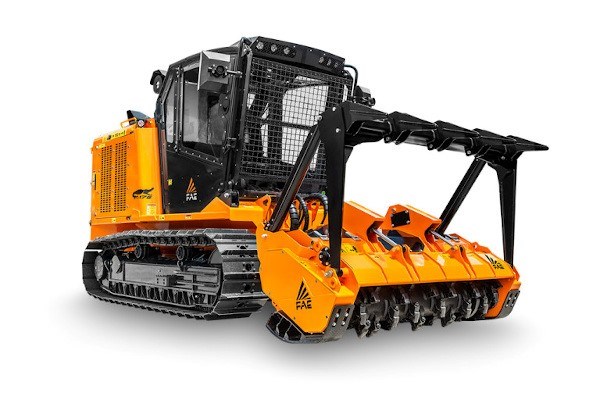

The FAE PT175 is a tracked carrier designed for forestry work when there is little space to maneuver anywhere that requires superior agility and efficiency.
Manage wooded areas, create firebreaks, work near power lines, oil and gas pipelines.
The sturdy construction with oscillating undercarriage is the best match for the 140/U mulcher.
The exclusive Sonic system increases mulching efficiency to achieve maximum productivity with minimum fuel consumption.
The engine power and low operating weight of the CAT C4.4 Acert makes it possible to work on steep slopes and soft ground.
The hydraulic system guarantees reliability and efficiency.
The spacious cab is unrivaled when it comes to comfort, ergonomics and operator safety.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Most important features
- POWERFUL
The flexibility and reliability of one of the world’s most popular four-cylinder engines.
The Caterpillar C4.4 Tier 4 Final/Stage V engine delivers 173 hp, with reliably superior performance and a global service network. - TECHNOLOGICAL
High-tech body and soul.
An integrated system developed by FAE to ensure maximum performance.
With a network of sensors to monitor key operating parameters, everything in the PT-175 can be easily fine-tuned. - COMFORTABLE
Designed with total operator comfort in mind. ROPS/FOPS/OPS cabs - the industry benchmark. High Lexan™ windows. Ergonomic joysticks. Pneumatic seat. 7” color display to monitor and modify all operating functions. - PRODUCTIVE
PT175 was created with a clear objective in mind: to optimize forestry work. The FAE 140/U/SONIC mulcher helps you easily manage woods and forests and create firebreaks near electric lines, oil and gas pipelines. - NIMBLE
Managing steep, soft, uneven ground with little space to maneuver is normal for FAE PT175.
Longitudinal slopes of 45° and transverse slopes of 32°. High power, low operating weight.
Minimum pressure against the ground: 3.9 psi.
APPLICATIONS:
- Forestry maintenance
- Stump removal
- Fire mitigation and protection
- Power lines, Oil & Gas R.O.W. maintenance
- Environmental, wildlife habitat protection & food plots
- Agricultural reclamation
- Dirt and gravel road construction and maintenance
- Soil mixing
- Dirt and gravel roads maintenance
STANDARD EQUIPMENT:
- Sonic System
- DOC/DPF/SCR after-treatment system
- CAT C4.4 Acert turbocharged and after-cooled engine
- Hydrostatic transmission attachments
- Oscillating undercarriage
- Combined aluminum cooler with anti-clogging fins
- ROPS/FOPS/OPS-approved cabin
- Comfort driver’s seat (heated and air suspended)
- Ergonomic joysticks
- Heating and air conditioning system
- Cabin dust filtration
- 7" LCD color display
- Multimedia - Bluetooth radio
- LED working lights
- Double emergency exit and roof hatch handle to open from the outside
- 12-mm Lexan cabin windshields
- H frame with tilting system
- 500-mm single-grouser steel pads, lubricated chain, dozer-roller version
- Hydraulic winch control kit and push frame
- Load Control SystemHydrostatic transmission
Specifications
| Model | PT 175 TIER 4 FINAL / STAGE V |
| Engine Gross Power | 173 hp |
| Engine Emission | U.S. EPA Tier 4 Final / EU Stage V |
| Travel Pumps | 2 - EP control - 60 cc - Danfoss |
| Travel Motors | 2 - HY control - 60 cc - Rexroth |
| Max Travel Pressure | 6000 psi |
| Attachment Pump | 1 - EP control - 100 cc - Danfoss |
| Max Mulcher Pressure | 5080 psi |
| Hydraulic Oil Tank Capacity | 61 gal |
| Fuel Tank Capacity | 66 gal |
| DEF AdBlue® Tank | 5 gal |
| Track Chain | 155 Pitch - Lubricated - Berco |
| Lower Rollers | 7 + 7 Single Flange |
| Carrier Rollers | 2 + 2 |
| Voltage | 24 volt |
| Max forward speed | 4.5 mph |
| Max reverse speed | 4.5 mph |
| Gradeability | 45° vertical, 32° lateral |
| Configuration tracks | 20 in pads / 28 in pads (single grouser) |
| Operating weight | 18935 lbs (std equipment, 20 in pads) 19632 lbs ( td equipment, 28 in pads) |
| Ground Pressure | 3.9 psi (std equipment / 28 in pads / 140/U-175) |
ATTACHMENT
| MODEL 140/U/SONIC/ | 140/U/SONIC/PT175-175 | 200/SC/PT175 |
| Head type | Mulcher | Mulcher |
| Working width (in) | 72 | 47 |
| Working width max range (in) | - | 47 |
| Total width (in) | 85 | 47 |
| Blade width (in) | - | 44 |
| Weight (lbs) | 3750 | 3870 |
| Rotor diameter (in) | 18 | - |
| Disc rotor diameter (in) | - | 32 |
| Disc rotor width (in) | - | 6 |
| Max. working depth (in) | - | 20 |
| Max shredding diameter (in) | 10 | 20 |
| No. teeth type C/3+C/3/SS | 38+4 | - |
| type I + C/3/SS | 54+2 | - |
| No. teeth type M/1+M/2+M/3+M/4 | - | 12+3+12+3 |
| No. blades / teeth type BL + C/3/SS | 30+2 | - |
