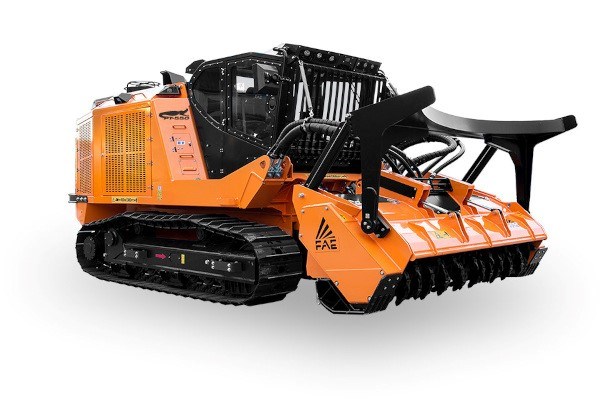

FAE PT550

Double tap to zoom

Most important features

POWERFUL
The strength and reliability of the Caterpillar C13B 536 hp six-cylinder engine.
Always topnotch performance supported by a global service network.
UNSTOPPABLE
Working on vast terrains with soft, uneven or swampy ground is the norm. Longitudinal slopes of max 45° and transverse slopes of max 35°. High power and minimum ground pressure of 5.4 psi.
TECHNOLOGICAL
High-tech body and soul.
An integrated system developed by FAE to ensure maximum performance.
With a network of sensors to monitor key operating parameters, everything in this tracked can be easily fine-tuned.
COMFORTABLE
Cab designed with total operator comfort and safety in mind. Pressurized Cat. 2 certified ROPS/FOPS/OPS, industry benchmark. High Lexan™ windows. Ergonomic joysticks. Pneumatic seat. 10” touch screen to control all operating functions. 360° camera system and dedicated display.
VERSATILE
Perfect for working in large woods or forests or along oil and gas pipelines. It can be hooked up to a forestry mulcher or a multitask head for crushing stones and tilling soil, which can also be combined with the Floating System function to ensure the unit always follows the ground’s contours closely and the Load Control function for optimal operating power management.

APPLICATIONS:

STANDARD EQUIPMENT

MODEL	PT550 Tier 4 Final / Stage V
Engine Gross Power	536 hp
Engine Emission	U.S. EPA Tier 4 Final / EU Stage V
Travel Pumps	2 - EP control - 100 cc - Danfoss
Travel Motors	2 - HY control - 160 cc - Danfoss
Max Travel Pressure	6090 psi
Attachment Pump	2 - EP control - 147 cc - Danfoss
Max Mulcher Pressure	5075 psi
Hydraulic Oil Tank Capacity	127 gal
Fuel Tank Capacity	190 gal
DEF AdBlue® Tank	18 gal
Track Chain	190 mm pitch - Lubricated - Berco (std equipment with 24 in pads)
Lower Rollers	6 + 6 Single Flange + 3 + 3 Double Flange
Carrier Rollers	3 + 3
Voltage	24 volt
Max forward speed	3.7 mph
Max reverse speed	3.7 mph
Gradeability	Vertical continuous 35° (intermittent 45°), Lateral continuous 32°
Operating weight	44533 lbs (std equipment with 24 in pads) 45768 lbs (std equipment with 32 in pads)
Ground Pressure	5.8 psi (std equipment / 36 in pads / 300/U/SONIC/PT550-250)

ATTACHMENT

PT550
