FAE RCU120
Double tap to zoom
RCU120
Remote Controlled Tracked Carriers
Overview:
Compact, remote controlled tracked carrier.
Power: 120 hp

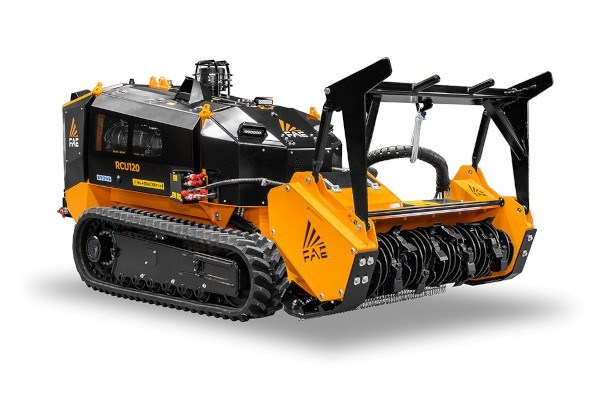

The RCU120 is a compact, powerful FAE tracked carrier that shreds branches, wood pieces, grass and small shrubs. It can also cut stumps and trim light vegetation when equipped with a stump cutter or flail mower. It is equipped with a 120-hp Rehlko (Kohler) engine. The RCU120 can work on steep slopes up to 55°. The heavy-duty undercarriage features a hydraulic variable track system with independent undercarriage frames for maximum stability on steep terrain. The high-profile rubber or steel tracks, combined with the undercarriage’s multiple roller system, provide unbeatable traction. The RCU120 is outfitted with a 120-hp Rehlko (Kohler) engine, and it features a dual hydrostatic transmission to maintain power to the tracks and the attachment. The RCU120 can be equipped with FAE mulchers, stump cutters, stone crushers and road planers.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Most important features
- SONIC
For increased productivity of up to 30%. - ROBUST
Structural steel frame. Integrated and protected components. - AGILE
Works on sloping terrain up to 55°. Full counter-rotating. - HIGH-TECH
Integrated system of electronic control units and sensors for maximum performance at all times. - PROFESSIONAL
The result of FAE’s experience designing PT and Demining tracked carriers. - POWERFUL
4 cyl. Turbo Aftercooler 120-hp engine.
APPLICATIONS:
- Forestry maintenance
- Power lines, Oil & Gas R.O.W. maintenance
- Roadside and railway vegetation maintenance
- Plantation and crop maintenance
- Canals, rivers, ponds overgrowth cleanup
- Stone crushing
- Asphalt milling
- Asphalt recycling
- Full-depth reclamation
Standard equipment
- Sonic System
- Independent hydraulic variable track gauge system
- Floating System
- DOC/DPF/SCR after-treatment system
- Load Control System
- Hydrostatic attachments transmission
- 4.3" LCD color display on remote control unit
- Double remote control battery and on-board battery charger
- 7" LCD on-board color display
- LED working light
- Auxiliary hydraulic circuit for attachments
- Proportional and reversible fan system with hydraulic control
- REHLKO (KOHLER) KDI 3404 turbocharged and after-cooled engine
- Combined aluminum cooler with anti-clogging fins
- Ergonomic joysticks
- Hydrostatic tracks transmission
- High-profile rubber tracks and rollers system
- SAE attachment plate
Specifications
| TECHNICAL DATA | RCU120 - Tier 4 Final / EU Stage V |
| Engine Gross Power | 120 hp |
| Engine Emission | U.S. EPA Tier 4 Final - EU Stage V |
| Closed Loop | Max flow 40 gal/min - Max pressure 5148 psi |
| Open Loop AUX 1 | Max flow 4 gal/min - Max pressure 3045 psi |
| Open Loop AUX 2 | Max flow 4 gal/min - Max pressure 3045 psi |
| Open Loop AUX 3 | Max flow 10.5 gal/min - Max pressure 3045 psi |
| Lifting Capacity | Max 2976 lb @ center of gravity position: Height 20 in from the ground level / Length 20 in from the attachment plate / Width on RCU central axis |
| Hydraulic Oil Tank Capacity | 15 gal |
| Fuel Tank Capacity | 20 gal |
| DEF AdBlue® Tank | 4 gal |
| Rubber Track | 86 mm pitch - 13 in width - High profile |
| Lower Rollers | 6 + 6HD style - Double flange |
| Front Idler / Tensioning Group | Double flange idler - Automatic tensioning system |
| Voltage | 12 Volt |
| Max Forward Speed | 3.1 mph |
| Max Reverse Speed | 3.1 mph |
| Gradeability | 55° - All directions |
| Operating Weight | 8488 lbs (std equipment, 13 in rubber track) |
| Ground Pressure | 5.8 psi (std equipment / 13 in rubber track / UML/SONIC/RCU120-150) |
Data refers to machine as standard set-up. Options may have reflects on weights and dimensions.
The technical data in this catalogue may be altered without prior notice.
