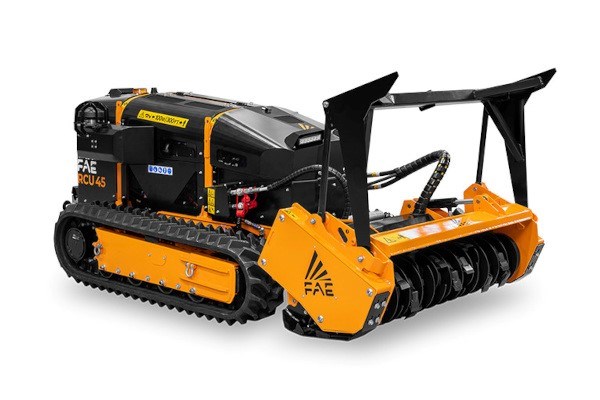

FAE RCU45

New Equipment / FAE / Land clearing / Tracked Carriers / Remote Controlled Tracked Carriers / RCU45

Double tap to zoom



Features

Most important features

  • Durable
    Steel structural frame. Integrated and protected components.
  • Agile
    Works on sloping terrain up to 55°. Full axis rotation.
  • Bite Limiter
    Available with the BL0/RCU forestry mulcher with Bite Limiter technology.
  • High-tech
    Integrated system of control units and sensors for maximum performance at all times.
  • Professional
    The fruit of FAE’s experience with Demining and PT tracked carriers.

APPLICATIONS:

  • Forestry maintenance
  • Power lines, Oil & Gas R.O.W. maintenance
  • Roadside and railway vegetation maintenance
  • Plantation and crop maintenance
  • Canals, rivers, ponds overgrowth cleanup


STANDARD EQUIPMENT:

  • DOC/DPF/SCR after-treatment system
  • Combined aluminum cooler with anti-clogging fins
  • Hydrostatic attachments transmission NEW
  • Hydrostatic transmission
  • Basic Load Control function
  • Auxiliary hydraulic circuit for attachments
  • RCU45 attachment plate NEW
  • Floating System
  • High-profile rubber tracks and bogie roller system
  • Proportional and reversible radiator fan
  • Ergonomic joysticks
  • 4.3" LCD color display on remote control unit
  • Double remote control battery and on-board battery charger
  • LED working lights
  • Engine YANMAR 3TNV86CT Turbocharged NEW

Specifications

TECHNICAL DATARCU4 5 - Tier 4 Final / Stage V
Engine Gross Power44 hp
Engine EmissionEPA Tier 4 Final - EU Stage V
Hydrostatic closed loop circuitMax Pressure 4205 psi
Attachment closed loop circuitMax Flow 16 gpm - Max Pressure 4205 psi
AUX 1Max Flow 5.3 gpm - Max Pressure 2175 psi
AUX 2Max Flow 7.9 gpm - Max Pressure 2175 psi
Lifting CapacityMax 992 Ibs @ center of gravity position: Height 10.5 in from the ground level / Lenght 14 in from the attachment plate / Width on RCU central axis
Hydraulic Oil Tank Capacity6.6 gal
Fuel Tank Capacity8.2 gal
Rubber Track72 mm Pitch - 10 in width - High profile
Lower Rollers4 + 4HD style - Double flange
Front Idler / Tensioning GroupSingle flange idler - Automatic tensioning system
Voltage12 Volt
Max Forward Speed30 mph (L mode); 7,5 Km/h (H mode)
Max Reverse Speed30 mph (L mode); 7,5 Km/h (H mode)
Gradeability55° - All directions
Operating Weight2910 Ibs (std equipment / standard rubber tracks)
Ground Pressure3.7 psi (std equipment / standard rubber tracks /

Data refers to machine as standard set-up. Options may have reflects on weights and dimensions.
The technical data in this catalogue may be altered without prior notice.
