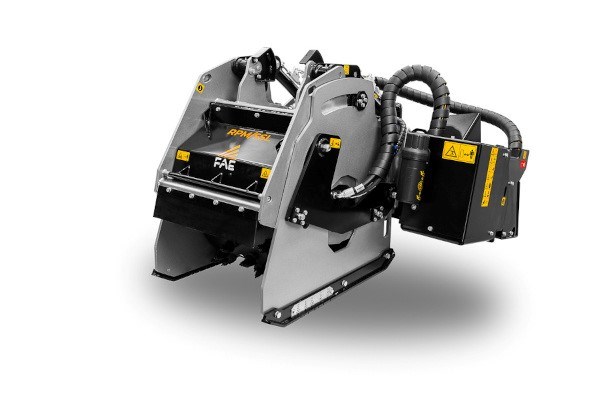

FAE RPM/SSL 60

New Equipment / FAE / Construction / Construction Hydraulic Driven Heads / Road planers for skid steers / RPM/SSL / RPM/SSL 60

Double tap to zoom

Features
Specifications

Features

Applications:

Asphalt milling
Asphalt recycling

Standard equipment

Hydraulic side shifting
Enclosed, dust-resistant machine body
Working pressure control gauge
Hydraulic hoses
12V diverter valve
Hydraulic block with safety and anticavitation valves
Adaptor wiring
SAE attachment frame with integrated water tank
Mechanical swinging and floating system
Mobile sides-frame
Cutting indicator
Direct-drive transmission
Wear-resistant interchangeable Hardox® soles
Support-skid-independent hydraulic control
Hydraulically adjustable working depth
Rotor with picks R/44/A
1130 cc hydraulic piston motor

Specifications

MODEL	RPM/SSL-60
Engine	75-135
Requirements Flow (gal/min)	32-45
Pressure (PSI)	2600-5080
Working width (in)	24
Total width (in)	65
Weight (lbs)	2580
Working depth (in)	0-10
Rotor diameter (in)	30
Tilting angle ±8	8°
Side shifting (in)	22
N° picks type R	66

Data refers to machine as standard. The technical data in this catalogue may be altered without prior notice.
