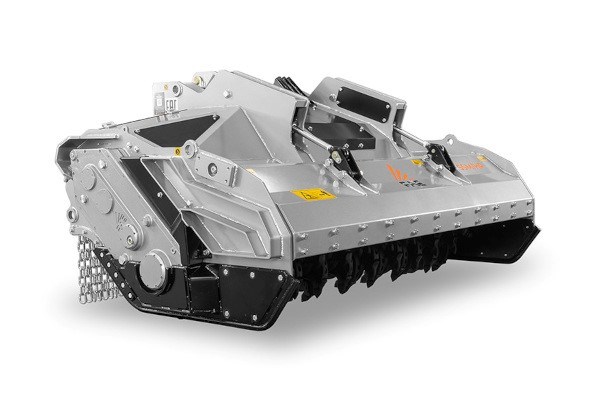

FAE SSM/HP 225

New Equipment / FAE / Land clearing / PTO Driven Heads / Tillers for Tractors / SSM / SSM/HP 225

Double tap to zoom

Features
Specifications

Features

Applications:

Plantation and crop maintenance
Orchard & vineyards maintenance and restoration
Agricultural reclamation
Soil mixing

Standard equipment

Interchangeable wear-resistant Hardox® plates
Adjustable Hardox® counter blade
Enclosed, dust-resistant machine body
Interchangeable protection chains
Transmission with side gearbox
Freewheel gearbox
Side PTO shafts with friction clutches
Central PTO shaft with cam clutch
PTO shaft support for machine at rest
Z style self-aligning system
Interchangeable forged steel rotor shafts
Wear-resistant side plates
Side gearbox cooling system
Hydraulic top link cylinder
Hydraulic rear hood

Specifications

Model	SSM/HP 225
Engine (hp)	170-300
PTO (rpm)	1000
Working width (in)	91
Total width (in)	104
Weight (lbs)	7606
Rotor diameter (in)	26.4
Max shredding diameter (in)	20
Max working depth (in)	16
No. teeth type A/3+MH	88+4
