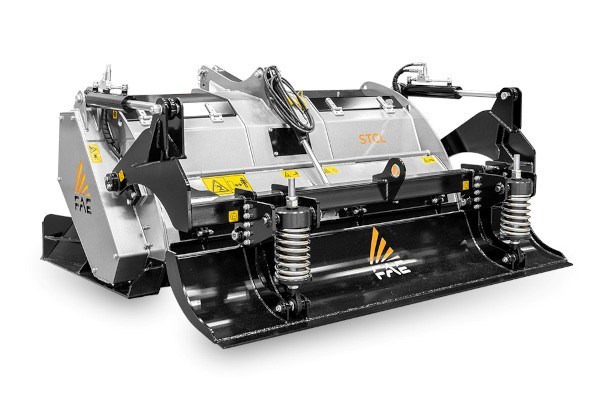

FAE STCL/DT 175

New Equipment / FAE / Land clearing / PTO Driven Heads / Stone Crushers for Tractors / STCL / STCL/DT 175

Double tap to zoom

Features
Specifications

Features

Applications:

Orchard & vineyards maintenance and restoration
Agricultural reclamation
Stone crushing

Standard equipment

Hydraulic rear hood
FCP wear-resistant clad plates
Enclosed, dust-resistant machine body
Adjustable Hardox® counter blade
Interchangeable protection chains
Flat welded Hardox® counter blades
Freewheel gearbox
Timing belt transmission
Central PTO shaft with cam clutch
PTO shaft support for machine at rest
540 or 1000 rpm transmission (STCL)
Penetration skids
Interchangeable forged steel rotor shafts
Rotor with teeth STCL/3
Wear-resistant side plates

Specifications

MODEL	STCL/DT 175
Engine (hp)	120-150
PTO (rpm)	1000
Working width (in)	72
Total width (in)	84
Weight (lbs)	3527
Rotor diameter (in)	17.7
Max shredding diameter (in)	6
Max working depth (in)	6
No. teeth type STCL/3+C/3/SS	38+4
