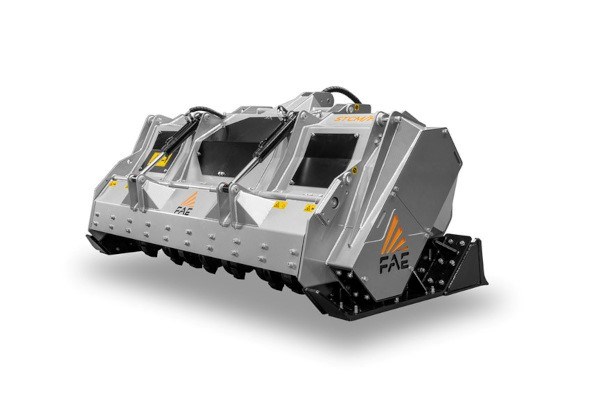

FAE STCM/HP 225

New Equipment / FAE / Land clearing / PTO Driven Heads / Stone Crushers for Tractors / STCM / STCM/HP 225

Double tap to zoom

Features
Specifications

Features

Applications:

Agricultural reclamation
Stone crushing

Standard equipment

Freewheel gearbox
Trapezoidal belt transmission (excl. STCM-125)
Belts transmission (STCM-125)
Central PTO shaft with cam clutch
PTO shaft support for machine at rest
Adjustable Hardox® counter blade
Enclosed, dust-resistant machine body (excl. STCM-125)
Interchangeable wear-resistant Hardox® plates (excl. STCM-125)
Adjustable Hardox® hydraulic counter blade (excl. STCM-125)
Interchangeable protection chains (STCM-125)
Bolt-on interchangeable protection chains (excl. STCM-125)
Flat welded Hardox® counter blades (excl. STCM-125)
Interchangeable forged steel rotor shafts
Rotor with teeth STC/3
Wear-resistant interchangeable Hardox® soles
Wear-resistant side plates
Adjustable skids
Penetration skids
Hydraulic rear hood

Specifications

MODEL	STCM/HP-225
Tractor (hp)	200-280
PTO (rpm)	1000
Working width (in)	91
Total width (in)	108
Weight (lbs)	8466
Rotor diameter (in)	21.7
Max shredding diameter (in)	12
Max working depth (in)	8
No. teeth type STC/3+STC/3/HD	48+4

Data refers to machine as standard. The technical data in this catalogue may be altered without prior notice.
