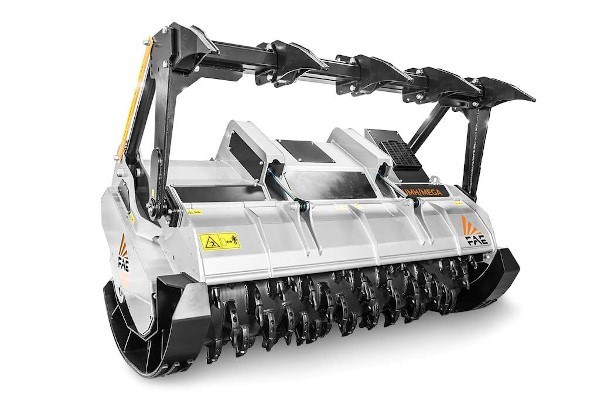

FAE UMH/MEGA 225

New Equipment / FAE / Land clearing / PTO Driven Heads / Mulchers for Tractors / UMH MEGA / UMH/MEGA 225

Double tap to zoom

Features
Specifications

Features

Applications:

Forestry maintenance
Fire mitigation and protection
Power lines, Oil & Gas R.O.W. maintenance
Agricultural reclamation
Maintenance of commercial and residential green areas
Stone crushing
Soil mixing

Standard equipment

Hydraulic rear hood
FCP wear-resistant clad plates
Enclosed, dust-resistant machine body
Interchangeable bolt-on counter blades
Interchangeable protection chains
Third row of interchangeable bolt-on counter blades (UMH/MEGA-250)
Hydraulic clutch transmission
Freewheel gearbox
Timing belt transmission
PTO shaft support for machine at rest
Z style self-aligning system
Adjustable 3-point linkage
Guard frame hydraulic control
Interchangeable forged steel rotor shafts
Rotor with teeth A/3
Wear-resistant side plates
Gearbox cooling system
Hydraulic top link cylinder
Central PTO shaft without cam clutch

Specifications

MODEL	UMH/MEGA-225
Engine (hp)	350-500
PTO (rpm)	1000
Working width (in)	91
Total width (in)	111
Weight (lbs)	13162
Rotor diameter (in)	35.8
Max shredding diameter (in)	20.0
Max working depth (in)	10
No. teeth type A/3+MH	94+2
