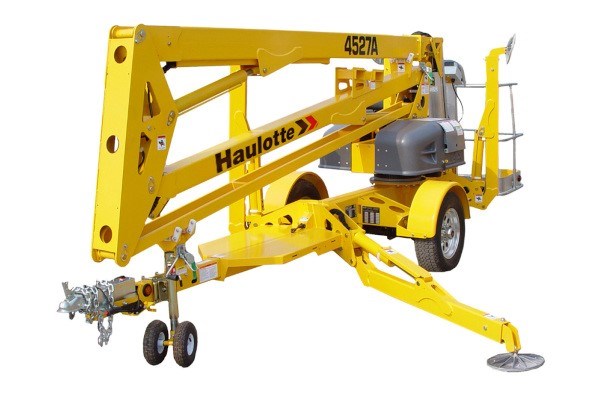

Haulotte 4527 A
Double tap to zoom
4527 A
Articulated & telescopic trailers
Overview:
With a working height of 51 feet and useable both in and outdoors, the 4527 A is the most popular type of platform with skilled tradesmen and local communities. The compact and lightweight design makes them towable to any site, no CDL required. Hydraulic outriggers set-up in less than 30 sec for safe work on uneven ground.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Product characteristics
- Indoor / Outdoor
- Uneven ground
- Electric
Application fields
- Logistic / Retail / Industry
- Landscaping
- Maintenance & Renovation
- Sporting & other events
Specifications
Ease of installation
- Can be towed by a standard half-ton pickup truck - No commercial driver’s license needed
- Hydraulic outriggers and automatic leveling allow operation in under 30 seconds
Exceptional productivity
- Safe elevation on slopes up to 12.5 degrees
- 100% Battery powered with optional generator for extended duty cycles
- Superior combination of industry leading capacity and outreach
- Air / water lines and 110V GFI protected power to the platform
Low maintenance
- Electronic controls simplify operation and minimize hydraulic hoses
Specifications
Technical data
| Working height | 51 ft |
| Platform height | 45 ft |
| Horizontal outreach (from centerline) | 27 ft |
| Horizontal outreach (from edge of footpad) | 21 ft |
| Up and over height | 20 ft 9 in |
| Lift capacity | 500 lb |
| Length - stowed | 20 ft 8 in |
| Width stowed | 5 ft 6 in |
| Height stowed | 6 ft 8 in |
| Platform size | 4 ft 1 in x 2 ft 9 in |
| Widest Point | 13 ft 9 in |
| Widest Point | 13 ft 6 in |
| Turntable rotation | 350° non-continuous |
| Jib - length | 4 ft 3 in |
| Jib - Vertical Motion | 150° (+ 70 / - 80) |
| Tow speed rating | 65 mph |
| Leveling capability | 12.5 ° |
| Tire size | ST 225 / 75 R15 |
| Power source | 4 x 6 V 245 amp-hr |
| Tongue weight (no options) | 290 lb |
| Weight (no options) | 4,200 lb |
Standard equipment
- Hydraulic outriggers
- Integrated forklift pockets
- Inboard 25 amp charger
- Air and water line to platform
- Easy to use controls
- 110V GFI protected outlet to platform and base
- Automatic leveling system and self-leveling platform
- Hour meter and battery condition indicator
- Tilt alarm/sensor
- Hydraulic surge brakes (trailer)
Main options
- Spare tire and mounting kit
- DC / Gas range extanding generator
- Manual platform rotator - 120° stop point to stop point
- Flashing beacon
- Electric brakes (Not available on 6543A)
- Drive and Set Package (not available on 3522 A & 6543 A)
- Mud flap
