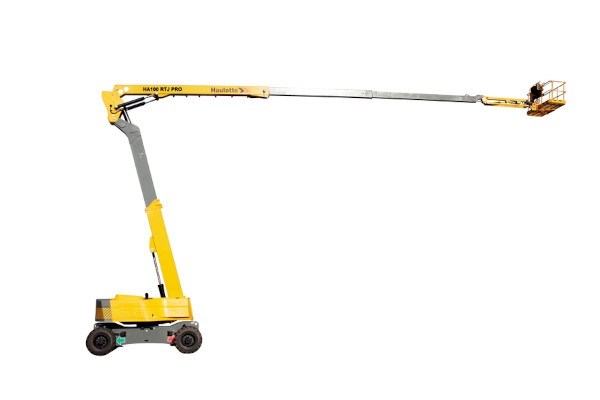

Haulotte HA100 RTJ PRO

New Equipment / Haulotte / Articulating Booms / HA100 RTJ PRO

Double tap to zoom

Product characteristics

Application fields

Presentation

Specifications

Outstanding rough terrain driving features

Unrestricted working envelope with maximum outreach
Oscillating axle
Differential wheel lock
95 seconds to full height thanks to fully proportional controls and simultanous boom functions

Optimized serviceability

Reliable and safe

Technical data

Working height	103 ft 9 in
Platform height	97 ft 9 in
Horizontal outreach	70 ft 10 in
Up and over clearance	37 ft 3 in
Below ground reach	18 ft 1 in
Lift capacity	550 lb (2 pers.)
Platform size	8 ft x 3 ft
Length	38 ft 5 in
Width	8 ft 4 in
Height - stowed	9 ft 2 in
Storage / transport length	29 ft 2 in
Storage / transport height	12 ft 4 in
Vertical jib rotation	140° (+ 70 / - 70)
Platform rotation	180° (+ 90 / - 90)
Turntable rotation	360° continuous
Tailswing	10 ft 10 in
Wheelbase	11 ft 6 in
Ground clearance	15 in
Tilt	5 °
Drive speed	0.3 - 3.1 mph
Maximum wind speed rating	37 mph
Gradeability	40 %
Tyres - foam-filled	445 / 65-22.5
Turning radius - outside axle extended	18 ft 10 in
Power source	Deutz, 55 kW, Turbo, Tier 4
Weight	44,321 lb
Width - with extended axles	10 ft 10 in

Standard equipment

Haulotte Activ’Shield Bar 2.0
Telematics solutions
4 wheel drive and 4 wheel steer
Front oscillating axle
2 extendable axles
Proportional controls
4 simultaneous movements
Differential wheel lock
Upper control box protection cover and tool tray in plastic ultra-ruggedized composite
Standard modular large platform with swing door entry gate
AC power to the platform
Basket compensation ± 10°
Swing out engine tray
Tilt / load alarm and light
Flashing beacon
Travel alarm
Hourmeter
Electric pump system and emergency descent
12 V battery / electrical control system
Engine pre-heater with light indicator
Low fuel level indicator (upper control box)
Towing hooks

Main options

HA100 RTJ PRO
