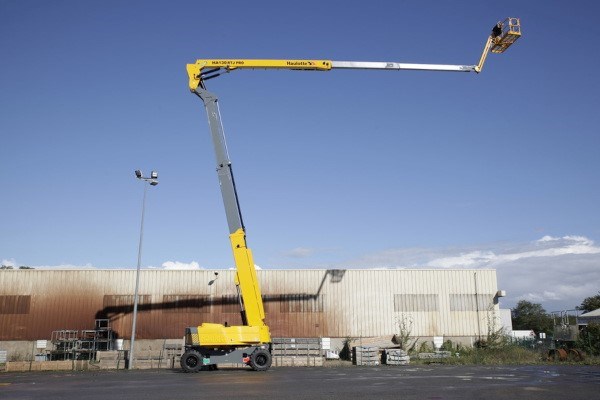

Haulotte HA130 RTJ PRO

New Equipment / Haulotte / Articulating Booms / HA130 RTJ PRO

Double tap to zoom

Product characteristics

Application fields

Presentation

Specifications

Outstanding rough terrain driving capabilities

Optimized serviceability

Reliable safety

Technical data

Working height	135 ft 7 in
Platform height	129 ft 7 in
Horizontal outreach	65 ft 11 in
Up and over clearance	57 ft 5 in
Below ground reach	4 ft 11 in
Lift capacity	500 lb (2 pers.)
Platform size	8 ft x 3 ft
Length	43 ft
Width	8 ft 2 in
Height - stowed	9 ft 10 in
Storage / transport length	36 ft 1 in
Storage / transport height	12 ft 3 in
Vertical jib rotation	140° (+ 70° / - 70°)
Platform rotation	180° (+ 90° / - 90°)
Turntable rotation	360° continuous
Tailswing	12 ft 9 in
Wheelbase	11 ft 6 in
Ground clearance	15 in
Tilt	4 °
Drive speed	0.31 - 3.1 mph
Maximum wind speed rating	28 mph
Gradeability	40 %
Tyres - foam-filled	445 / 65 - 22.5
Turning radius - outside axle extended	18 ft 10 in
Power source	Deutz, 55 kW, Turbo, Tier 4
Weight	52,700 lb
Width - with extended axles	10 ft 10 in

Standard equipment

Haulotte Activ’Shield Bar 2.0
Telematics solution
4 wheel drive and 4 wheel steer
Front oscillating axle
2 extendable axles
Fully proportional controls
4 simultaneous movements
Differential wheel lock
Upper control box protection cover and tool tray in plastic ultra-ruggedized composite
Modular large platform with swing door entry gate
Basket compensation ± 10°
AC power to the platform
Swing out engine tray
Tilt / load alarm and light
Flashing beacon
Travel alarm
Electric pump system and emergency descent controls in upper control box
12 V battery
Engine pre-heater with light indicator
Low fuel level indicator (upper control box)
Towing hooks

Main options

HA130 RTJ PRO
