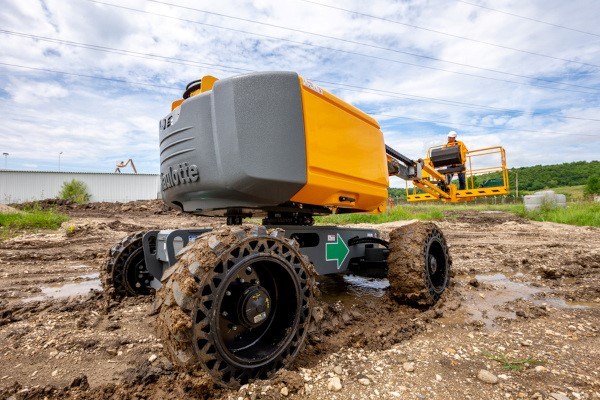

Haulotte HA46 RTJ O

New Equipment / Haulotte / Articulating Booms / HA46 RTJ O

Double tap to zoom

Features
Specifications

Features

Product characteristics

Outdoor
Uneven ground
Diesel

Application fields

Finishing
Construction
Landscaping
Maintenance & Renovation
Sporting & other events

Presentation

Performance & ease of use
Comfort and safety
Minimized total cost of ownership

Specifications

Performance & ease of use

Industry leading working envelope with an outreach of 27 ft 3 in
Rapid lifting speed of 40 sec
Fully proportional and simultaneous movements

Comfort and safety

Haulotte Activ'Shield Bar 2.0 (option)
Haulotte Activ'Lighting System (option) for safe loading / unloading in low visibility conditions

Minimized total cost of ownership

Haulotte Activ'Screen (on board diagnostics)
Haulotte Stop Emission System: automatically turns engine off & on
Easy access to all components
Fully modular basket with upper control box cover

Specifications

Technical data

Working height	51 ft 11 in
Platform height	45 ft 11 in
Horizontal outreach	27 ft 3 in
Up and over clearance	25 ft 1 in
Lift capacity	500 lb (2 pers.)
Platform size	95 in x 34.5 in
Length	22 ft 2 in
Width	7 ft 7 in
Height - stowed	7 ft 7 in
Storage / transport length	16 ft 7 in
Storage / transport height	7 ft 10 in
Vertical jib rotation	140° (- 80° / + 60°)
Platform rotation	165° (- 75° / + 90°)

Turntable rotation	355° non continuous
Tailswing	4 in
Wheelbase	6 ft 11 in
Ground clearance	15 in
Tilt	5 °
Drive speed	3.2 mph
Maximum wind speed rating	28 mph
Gradeability	40 %
Tires - solid rough terrain	32.7 x 11.2 in
Turning radius - outside	14 ft 9 in
Power source	Kubota, TIER 4 final, Stage V, V1505 E4B / 18,5 kW
Weight	13,835 lb

Standard equipment

Haulotte Stop Emission System
Haulotte Activ'Screen
Telematics solutions
4 wheel drive
2 wheel steer
Front oscillating axle increases stability on uneven ground
4 simultaneous movements for maximum productivity
Permanent limited slip differential
Upper control box cover
Tool tray
Modular standard basket 8 ft x 3 ft, quick and easy to repair
Lateral swing door entry gate
AC power to platform (110 / 230 V)
Swing out engine tray for ease of maintenance
Sound and light alarm for tilt and load
Rotating beacon
Travel alarm
Hour meter
12 V battery / electrical control system
Engine pre-heater with light indicator
Low fuel level indicator (upper & lower control boxes)
Electric emergency descent pump system

Main options

Haulotte Activ'Lighting System
Haulotte Activ'Shield Bar 2.0
Non-marking tires
Air-line to platform 0.25 in inside diameter
Hydraulic generator Dynaset 3.7 Kw
Biodegradable hydraulic oil
Cold weather kit: 14°F / - 13°F
Warm weather kit: hydraulic oil cooler + hydraulic oil
Platform work lights
Battery cut-off
