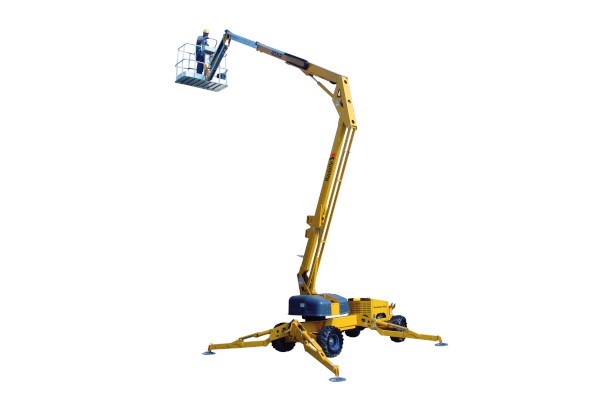

Haulotte 45 XA

New Equipment / Haulotte / Lightweight self-propelled booms / 45 XA

Double tap to zoom

Features
Specifications

Features

Product characteristics

Indoor / Outdoor
Uneven ground
Electric

Application fields

Landscaping
Sporting & other events

Specifications

Access like never before

Hydraulic outriggers and automatic leveling allow operation in under 30 seconds
High performance 4WD and light weight provide access to places larger and heavier machines cannot go
Easily transported on a trailer with no commercial driver’s license requirement
Dual power source (DC / Gas) allows for indoor/outdoor use

Optimum performance

4,000 Watt generator
Air / water lines to platform
110V GFI protected power to the platform

Specifications

Technical data

Working height	51 ft
Platform height	45 ft
Horizontal outreach (from centerline)	27 ft
Horizontal outreach (from edge of footpad)	21 ft
Up and over height	20 ft 9 in
Lift capacity	500 lb
Length - stowed	18 ft 2 in
Width stowed	5 ft 6 in
Height stowed	6 ft 7 in
Wheelbase	8 ft 9 in
Ground clearance	6 in
Platform size	5 ft x 2 ft 6 in
Outrigger footprint	12 ft 4 in x 11 ft 4 in

Turntable rotation	350° non-continuous
Jib - length	4 ft 3 in
Jib - Vertical Motion	150° (+70 / -80)
Drive speed	4 mph (max)
Gradeability	45%
Turning radius - inside (2WS)	10 ft
Turning radius - inside (4WS)	5 ft 4 in
Tire size	26 x 12 Bar lug
Batteries	4 x 6V 260 Amp-hr
Engine	26.5 hp gas
Weight	5,200 lb

Standard equipment

Hydraulic outriggers
Bar lug tires
Inboard 25 amp charger
Spring applied hydraulic released brakes
Tilt alarm / sensor
Easy to use controls with logically positioned buttons
Dual power system
Battery condition indicator
Hour meter
4,000 W generator
110V GFI protected outlet to platform and base
Air and water lines to platform
Self-leveling platform
Automatic leveling system (leveling capability 12.5°)
4 wheel steering (standard on HLA19PX)

Main options

Turf tires
Flashing beacon
Fluorescent tube caddy
Tool tray
