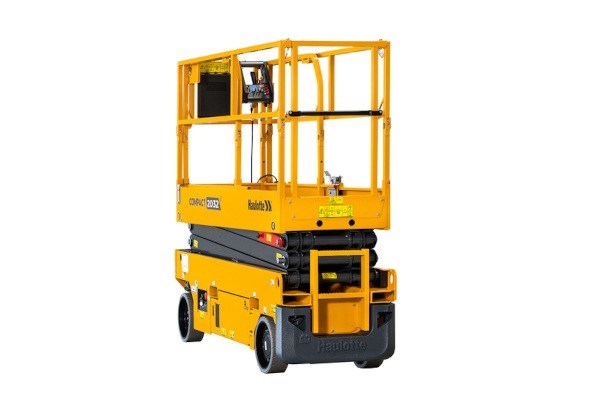

Haulotte Compact 2032 E

New Equipment / Haulotte / Scissor Lifts / Compact 2032 E

Double tap to zoom



Features

Product characteristics

  • Indoor / Outdoor
  • 5-year warranty
  • Even ground
  • Electric

Application fields

  • Finishing
  • Logistic / Retail / Industry
  • Maintenance & Renovation
  • Sporting & other eventseree

Presentation

  • Smart rugged design
  • Maximized potential
  • Unique user experience
  • Unbeatable serviceability


Specifications

Smart rugged design

  • Impact-proof counterweight with integrated ladder protection, AC motors and charger plug
  • Reinforced guardrails with additional vertical stiles for maximum durability

Maximized potential

  • Access all worksites: foldable guardrails, lateral & longitudinal forklift pockets
  • IN/OUT usage with no platform weight capacity restriction

Unique user experience

  • Proportional movements for precise driving (AC motors)
  • Ergonomic upper control box with grab handle & speed selector

Unbeatable serviceability

  • Haulotte Activ'Energy Management for battery care
  • On-board & remote settings and diagnostic tools with Haulotte Diag, Haulotte Activ’Screen and Sherpal telematics solution

Specifications

Technical data

Lift capacity - inside770 lb (2 pers.)
Lift capacity - outside770 lb (1 pers.)
Lift capacity - extension265 lb
Platform length - outside7 ft 10 in
Platform length - extended10 ft 11 in
Extension length37 in
Platform width - outside32 in
Height - stowed7 ft 4 in
Height - guardrails lowered6 ft
Overall width32 in
Length8 ft 2 in
Wheelbase6 ft 1 in
Ground clearance5 in
Ground clearance - pothole guards deployed1 in
Drive speed0.43 - 2.61 mph
Gradeability25 %
Tilt (longitudinal / lateral)3.5° / 1.5°
Turning radius - outside6 ft 9 in
Non-marking tires15 x 5
Batteries24 V - 225 Ah (C20)
Hydraulic system capacity3 gal
Weight4,675 lb
Auxilliary hydraulic ports0 mph
Auxilliary hydraulic ports0 mph
Auxilliary hydraulic ports0 mph
Auxilliary hydraulic ports0 mph
Length of the chassis (without platform)0 ft
Working height - indoor25 ft 8 in
Working height - outdoor25 ft 8 in
Platform height - indoor19 ft 8 in
Platform height - outdoor19 ft 8 in
Max. drive working height - indoor25 ft 8 in
Max. drive working height - outdoor25 ft 8 in
Length of the chassis (without platform)0 ft
Working height - indoor25 ft 8 in
Working height - outdoor25 ft 8 in
Platform height - indoor19 ft 8 in
Platform height - outdoor19 ft 8 in
Max. drive working height - indoor25 ft 8 in
Max. drive working height - outdoor25 ft 8 in


Standard equipment

  • Haulotte Activ'Screen: on-board diagnostic and setting screen
  • Haulotte Activ'Energy Management: Smart CAN charger with manual battery water filling system
  • Versatile use : outdoor/ indoor
  • Foldable guardrails
  • Front platform extension
  • Swing gate entry
  • AC motors
  • 27A multivoltage charger
  • Mobile pothole guards
  • Battery access with swing out tray
  • Lateral & longitudinal forklift pockets
  • Motion alarm
  • Single flashing light
  • 2 front steering wheels, 2 rear drive wheels
  • Solid non marking tires

Main options

  • Haulotte Activ'Energy Management: automatic battery water filling systems
  • Telematics solutions
  • AGM maintenance-free batteries
  • Pipe cradle
  • Panel carrier
  • Additional protection of upper & lower control box
  • Working light
  • Flashing light (dual or 360°)
  • Biodegradable hydraulic oil
  • Cold weather hydraulic oil
