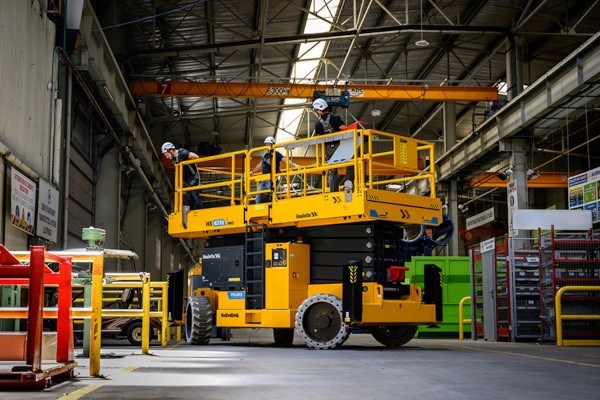

Haulotte HS6395 E

New Equipment / Haulotte / Scissor Lifts / HS6395 E

Double tap to zoom

Features
Specifications

Features

Product characteristics

Indoor / Outdoor
Uneven ground
Electric

Application fields

Finishing
Logistic / Retail / Industry
Construction
Maintenance & Renovation
Sporting & other events

Presentation

100% electric drive & rough terrain capabilities
High performance
Easy maintenance & durability

Specifications

100% electric drive & rough terrain capabilities

Silent & clean operations: ideal for both indoor and outdoor use
Manual and automatic differential lock: optimum grip on difficult terrain
4-wheel steering (PRO model only): improved maneuverability on all types of terrain
Upper control box with integrated screen: real-time information

High performance

Removable Range Extender(optional): extends autonomy with low power consumption
Platform capacity of 1654 lb
Full-height drive capability with no load restrictions
24 ft 7 in large deck with 2 extensions for extended workspace and outreach
Self-aligning rear-wheels (PRO model only): improved safety for loading procedures

Easy maintenance & durability

Lithium-ion batteries with 5-year warranty: extended autonomy, long-lasting performance and zero maintenance
Activ'Screen: on-board configuration & diagnostic interface
Easy access to components for fast and efficient maintenance

Specifications

Technical data

Working height	69 ft
Overall width	7 ft 11 in
Platform height	63
Lift capacity	1654 lb (4 pers.)
Lift capacity - extension	500 lb
Platform length - outside	16 ft 3 in
Platform length - extended	24 ft 7 in
Extension length	4 ft 2 in
Platform width - outside	6 ft 9 in
Height - stowed	11 ft 6 in
Height - guardrails lowered	8 ft 11 in
Length	16 ft 3 in
Wheelbase	9 ft 10 in

Ground clearance	11 in
Auxilliary hydraulic ports	0.5
Drive speed	2.8
Gradeability	38 %
Tilt (longitudinal / lateral)	3,5° / 1,5°
Lift / lower speed	100 s
Turning radius - outside	24 ft 5 in
Tires	35 X 14 in
Hydraulic system capacity	21.6
Weight	23 369 lb
Batteries (net capacity)	Li-ion: 25.8 hp

Standard equipment

4 wheel drive
72V Lithium-ion batteries pack with 5-year warranty
4 wheel-steer with self-aligning rear-wheels (PRO model only)
AC motors
Access to th MyHaulotte multi-service portal
Telematic solution
Haulotte Activ'Energy Management: smart battery management system
Haulotte Activ'Screen
Haulotte Activ'Lighting System(standard PRO model)
Dual extensions
Outriggers with automatic or individual set up
Folding guardrails
Manual and automatic differential lock
Upper control box with integrated screen

Main options

Range extender (5.2 kW)
Squawker
Leak containment system
Platform plinth access handles
Material handling rack
SHERPAL telematics solution
Cold & arctic weather kits
Non marking tires
AC power to platform plug (110 / 230 V)
Double swing gate entry
Fast charger (380 V)
Central tube holder
Platform lighting
Haulotte Activ'Shield Bar
Air line to platform
