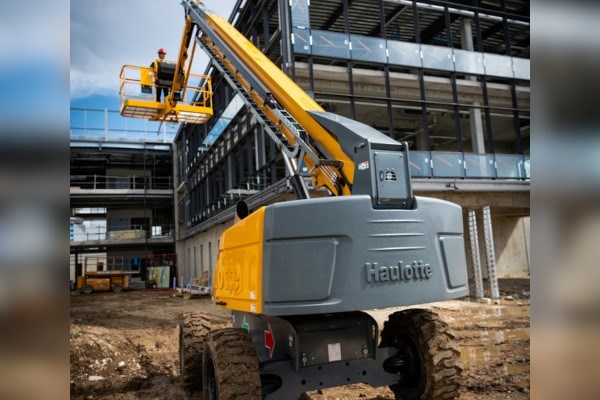

Haulotte HT67 RTJ O

New Equipment / Haulotte / Telescopic Booms / HT67 RTJ O

Double tap to zoom

Features
Specifications

Features

Product characteristics

Outdoor
Uneven ground
Diesel

Application fields

Finishing
Construction
Landscaping
Maintenance & Renovation
Sporting & other events

Presentation

Outstanding performance & productivity
Reliable safety and comfort
Minimized Total Cost of Ownership

Specifications

Outstanding performance & productivity

Superior work envelope
Platform load capacity 500 lb
Dual load 500-1000 lb (Standard in US & Canada)

Reliable safety and comfort

Haulotte Activ'Shield Bar 2.0
Haulotte Activ'Lighting System for safe loading/unloading in low visibility conditions (standard on PRO)
Quick, proportional and simultaneous movements
Rigid boom

Minimized Total Cost of Ownership

Haulotte Activ'Screen diagnostic display for onboard fault & service alerts
Haulotte Stop Emission System automatically turns engine off & on
Easy access to all components
Exclusive modular platform, quick and easy to repair

Specifications

Technical data

Working height	73 ft
Platform height	67 ft
Horizontal outreach	60 ft 5 in
Below grade reach	13 ft 1 in
Lift capacity	500 lb (2 pers.) option: 1 000 lb (3 pers.)
Platform size	8 ft x 3 ft
Length - stowed	34 ft 3 in
Length - transport	25 ft 8 in
Width	8 ft 1 in
Height - stowed	8 ft 11 in
Height - transport	10 ft 10 in
Vertical jib rotation	133° (+68/-65)
Platform rotation	180° (+90/-90)
Boom rotation angle	90° (+75/-15)
Turret swing	360° continuous
Tailswing	3 ft 7 in
Wheelbase	8 ft 2 in
Ground clearance	14 in
Tilt alarm	5°
Drive speed	0.3 - 4.0 mph
Maximum wind speed rating	28 mph
Gradeability	40 %
Turning radius - outside	20 ft 8 in
Foam filled tires	385/65 - 22.5
Fuel tank	44 gal
Engine	Deutz, 44.5kW, 62 hp (t4f)
Weight	29,365 lb

Standard equipment

Haulotte Activ'Lighting System (standard on PRO)
Haulotte Activ'Shield Bar (standard on PRO)
Haulotte Stop Emission System
Haulotte Activ’Screen onboard colored monitor screen and diagnostic system
Universal telematics plug
4 wheel drive / 2 (O) or 4 (PRO) wheel steer
Front oscillating axle for increased stability on rough terrain
Proportional controls enhance comfort and safety
4 simultaneous movements for maximum productivity
Automatic differential wheel lock for superior rough terrain capability
Upper control box protection cover and tool tray in ultra-rugged composite
Large modular platform 8 ft x 3 ft with swing gate
Platform limitation +/- 10°
Power to platform 110 / 230V
Swing out engine tray for ease of maintenance
Visual and audio alarms for tilt and load sensing
Rotating beacon
Driving alarm
Hour meter
Electric pump system and emergency descent
12 V battery
Engine pre-heater with light indicator
Low fuel level indicator (upper control box)

Main options

Haulotte Activ'Lighting System (O model)
Haulotte Activ'Shield Bar 2.0 (O model)
Narrow modular platform 5 ft 9 in x 2 ft 6 in with swing door
Air line to platform
3.5 kW, 6.5 kW, 12 kW hydraulic generator
Biodegradable hydraulic oil
37 mph wind speed
Warm weather package
Cold weather package / Arctic kit
Pipe cradle kit
Glazier kit
Work lights
