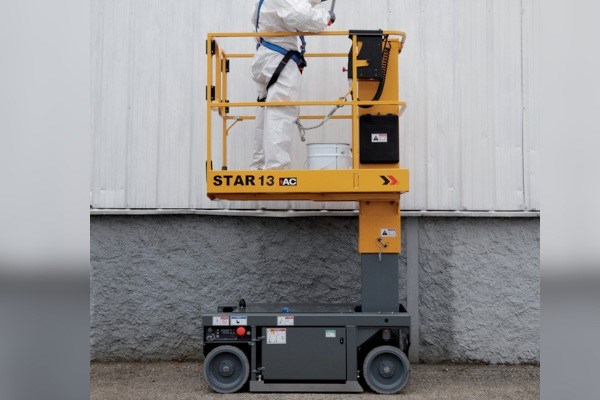

Haulotte Star 13

New Equipment / Haulotte / Vertical Masts / Star 13

Double tap to zoom

Go everywhere

The best value for the money

Technical data

Working height	18 ft 6 in
Platform height	12 ft 6 in
Horizontal outreach	16 in
Lift capacity	500 lb (2 pers.)
Lift capacity - outside	500 lb (1 pers.)
Platform size	2 ft 6 in x 4 ft 6 in
Platform size with extension (option)	2 ft 6 in x 4 ft 6 in + 16 in
Length	4 ft 7 in
Width	2 ft 7 in
Height - stowed	5 ft 11 in
Wheelbase	3 ft 6 in
Ground clearance	2.36 in
Drive speed	0.5 - 2.8 mph
Turning radius - outside	5 ft 7 in
Tilt alarm	1.5 ° / 3 °
Gradeability	25 %
Driveable at full height up to	12 ft 6 in
Tires	13 x 5
Batteries	12 V - 105 Ah (C5)
Weight	2,006 lb

Standard equipment

Main options

Haulotte Activ'Energy Management: automatic or manual battery waterfilling systems
Upper control box cover
Tool tray
Power to the platform
Ground-fault circuit interrupter 30 mA
Telematics ready
Biodegradable hydraulic oil
Cold weather hydraulic oil
Flashing beacon
Fluorescent tube caddy

Star 13
