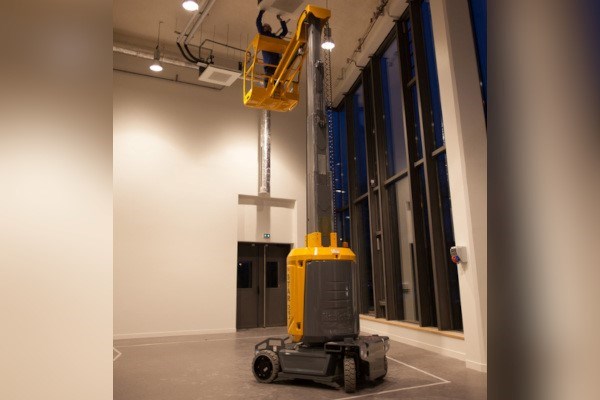

Haulotte Star 26 J
Double tap to zoom
Star 26 J
Vertical Masts
Overview:
Agile, robust, easy to use and maintain, STAR vertical masts are intended for use in multiple applications. The STAR range is equipped with asynchronous motors (AC) that combine proportionality and torque. Ideal on congested and difficult-to-access sites, the STAR 26 J jib has a 9.10 ft outreach for maximum productivity. The STAR 26 J has zero tail swing. During turret rotation, nothing protrudes from the frame. The machine and its environment are protected.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Optimal agility in confined working areas
- Dynamic electric drive AC motors
- 9 ft 10 in outreach with jib
Minimal maintenance and downtime
- Maintenance free brushless AC motors
- Haulotte Activ'Screen (onboard diagnostic)
- Almost 0 battery maintenance : automatic & centralized waterfilling system
Longer lifetime
- Unbreakable hoods in composite material
- Pins, bushes, non-painted parts and fastening hardware are 3 times more durable
Smarter transport
- Versatile and effective transport solutions with forklift tine pockets
- 25% gradeability to easily climb truck ramps
Specifications
Technical data
| Working height | 32 ft 1 in |
| Platform height | 26 ft 1 in |
| Horizontal outreach | 9 ft 10 in |
| Lift capacity | 500 lb (2 pers.) |
| Lift capacity - outside | 500 lb (1 pers.) |
| Platform size | 2 ft 7 in x 3 ft 3 in |
| Length | 8 ft 10 in |
| Width | 3 ft 3 in |
| Height - stowed | 6 ft 6 in |
| Tailswing | 0 in |
| Wheelbase | 3 ft 11 in |
| Ground clearance | 4 in |
| Drive speed | 0.4 - 3.1 mph |
| Turning radius - outside | 6 ft 2 in |
| Turntable rotation | 345 ° |
| Tilt alarm | 3 ° |
| Gradeability | 25 % |
| Driveable at full height up to | 26 ft 1 in |
| Tires | 16 x 5 x 10.5 |
| Batteries | 24 V - 250 Ah |
| Weight | 6,400 lb |
| Vertical jib rotation | 130° (+ 70 ° / - 60 °) |
| Hydraulic tank capacity | 2 gal |
Standard equipment
- Haulotte Activ'Energy Management: Smart CAN charger
- Automatic centralized battery filling
- 24 V electric drive brushless AC motors
- 24 V – 250 Ah traction batteries
- Battery charge indicator
- Haulotte Activ'Screen on-board diagnostic tool
- Forklift pockets
- Towing hooks and lifting eyes
- Pothole protection
- 2 front steering wheels
- 2 rear driving wheels
- Non-marking tires
- Brake release
- Hourmeter
- Horn
- Emergency stop buttons at platform and ground level
- Load controller in the platform
- Emergency hand pump
- 2 control stations - platform and ground level
- 2 Lanyard attachment points
- Travel alarm
Main options
- Haulotte Activ'Shield Bar
- AC Power to the platform (Standard on US machines)
- Air line to the platform
- Swing door entry gate (Standard on US machines)
- Biodegradable oil
- Maintenance-free batteries
- Telematics ready
- Hydraulic oil for cold climates
- Flashing light
- Working light
