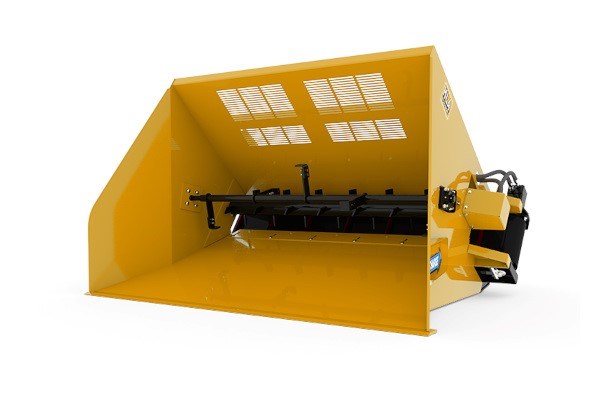

HLA Attachments Side Discharge Straw/Lime Bucket

New Equipment / HLA Attachments / Buckets / Side Discharge Straw/Lime Bucket

Double tap to zoom



Features

  • Minimum 12 GPM required
  • Hydraulic drive (coupled direct)
  • Agitator prevents material bridging
  • Secondary metering drum regulates flow onto the belt
  • Mesh in back panel for increased visibility
  • 12" wide high abrasion rubber belt with 1 ½" paddles
  • Discharge from either side of machine
  • Conveyor assembly removable for accessibility
  • Bolted adaptation for loader quick-tach. Easily convert to most loaders
  • 59"H x 58"L outside dimensions
  • For Outside Width add 1-1/4" to Inside Width dimension

Specifications

Part NumberDescriptionInside WidthHeaped Capacity (approx)Weight in lbs
SST7272" Side Discharge - Straw/Lime72"2 cu yd1365
SST8484" Side Discharge - Straw/Lime84"2-1/3 cu yd1535
SST9696" Side Discharge - Straw/Lime96"2-3/4 cu yd1700
LP102468Optional Agitator Speed Control Valve - Factory Installed Only
HK90Optional 90" Hose Kit c/w Flat Faced Couplers
HK9090Optional 90" Hose Kit c/w 90° Flat Faced Couplers
SHMKOptional Spring Hose Mount Kit

Optional CAT 2 Three Point Hitch Mount c/w Tilting Cylinder
