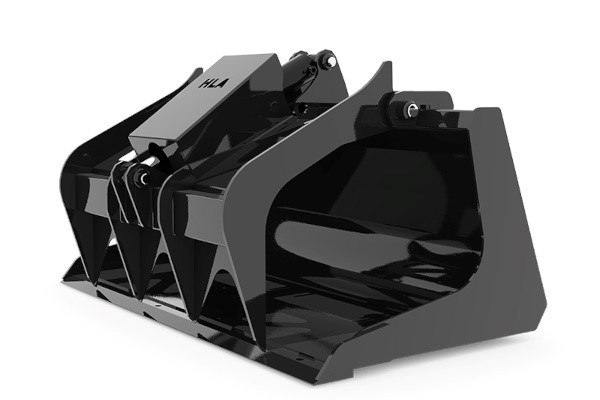

HLA Attachments Compact Scrap Grapple Bucket

New Equipment / HLA Attachments / Grapples / Compact Scrap Grapple Bucket

Double tap to zoom



Features

  • 3/16" material, 1/4" end plates
  • 3/4 X 4 bevelled cutting edge
  • Single grapple arm
  • 26" overall height
  • 26" overall depth
  • Opens to 35"
  • Comes with 2-1/2" x 8" cylinder
  • Drilled for standard bolt on cutting edge
  • Add 2" to Inside Width column to calculate Outside Width of bucket

Specifications

Part NumberDescriptionINSIDE WIDTH (INCHES)STRUCK CAP.
CU. FT.		SAE
HEAPED CAP.
CU. FT.		APPROX. WEIGHT
LBS.
SGBC3636" Compact Scrap Grapple Bucket365.46.9440
SGBC4242" Compact Scrap Grapple Bucket426.38.0445
SGBC4848" Compact Scrap Grapple Bucket487.29.2450
SGBC5454" Compact Scrap Grapple Bucket548.110.4465
SGBC6060" Compact Scrap Grapple Bucket609.011.6480
HK90Optional 90" Hose Kit c/w Flat Faced Couplers
HK9090Optional 90" Hose Kit c/w 90° Flat Faced Couplers
SHMKOptional Spring Hose Mount Kit
