HLA Attachments High Volume Front End Loader Bucket & Large Utility Grapple
Double tap to zoom

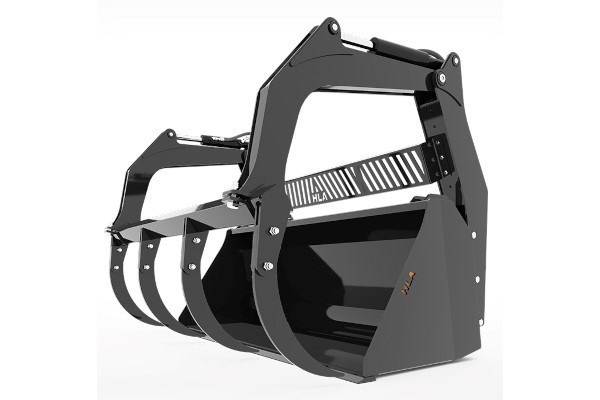

High Volume Front End Loader Bucket & Large Utility Grapple
Grapples
Overview:
- Same features as regular & heavy duty MBHV buckets
- Opens to 85"
- Handles large round bales up to 6 ft.
- Bolt-on grapple post design
- Tapered end plates are self-cleaning and reduces material build-up
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Specifications
| Part Number | Description | APPROX. WEIGHT LBS. |
| MBHV84GRL72 | 84" Regular Duty HV Material Bucket & GRL72 Grapple | 1305 |
| MBHV84HDGRL72 | 84" Heavy Duty HV Material Bucket & GRL72 Grapple | 1475 |
| MBHV96GRL84 | 96" Regular Duty HV Material Bucket & GRL84 Grapple | 1360 |
| MBHV96HDGRL84 | 96" Heavy Duty HV Material Bucket & GRL84 Grapple | 1590 |
| MBHV108HDGRL96 | 108" Heavy Duty HV Material Bucket & GRL96 Grapple | 1835 |
| LP101006 | Optional Bolt On Guard for GRL72 | 44 |
| LP101576 | Optional Bolt On Guard for GRL84 & GRL96 | 52 |
| HK90 | Optional 90" Hose Kit c/w Flat Faced Couplers | |
| HK9090 | Optional 90" Hose Kit c/w 90° Flat Faced Couplers | |
| SHMK | Optional Spring Hose Mount Kit | |
| 346CEB | 3/4 X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts | |
| 348CEB | 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts | |
| 346CESB | 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts |
