HLA Attachments Scrap Grapple Bucket
Double tap to zoom

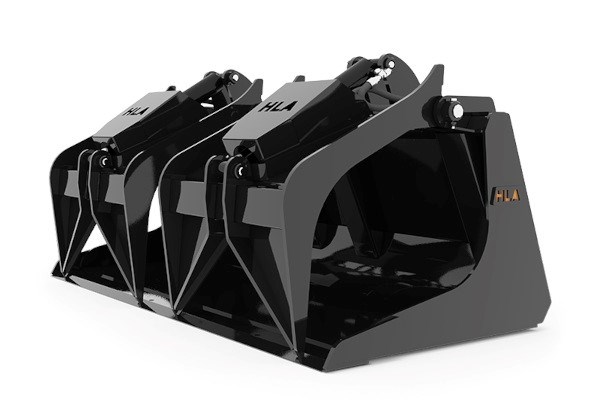

Scrap Grapple Bucket
Grapples
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Two independent grapples
- 1/4" material, 3/8" end plates
- 3/4 X 6 bevelled cutting edge
- Ideal for awkward abrasive loads
- 31" overall height
- 34" overall depth
- Comes with 2-1/2" x 8" cylinders
- Drilled for standard bolt on cutting edge
Specifications
| Part Number | Description | INSIDE WIDTH INCHES | STRUCK CAP. CU. FT. | SAE HEAPED CAP. CU. FT. | APPROX. WEIGHT LBS. |
| SGB54 | 54" Scrap Grapple Bucket | 54 | 11.9 | 15.3 | 1000 |
| SGB60 | 60" Scrap Grapple Bucket | 60 | 13.2 | 17.1 | 1040 |
| SGB66 | 66" Scrap Grapple Bucket | 66 | 14.5 | 18.9 | 1080 |
| SGB72 | 72" Scrap Grapple Bucket | 72 | 15.9 | 20.7 | 1120 |
| SGB78 | 78" Scrap Grapple Bucket | 78 | 17.2 | 22.5 | 1165 |
| SGB84 | 84" Scrap Grapple Bucket | 84 | 18.2 | 24.2 | 1200 |
| SGB96 | 96" Scrap Grapple Bucket | 96 | 20.9 | 29.9 | 1290 |
| THSGB84 | 84" Telehandler Scrap Grapple Bucket | 84 | 37.8 | 48.8 | 1955 |
| THSGB96 | 96" Telehandler Scrap Grapple Bucket | 96 | 43.2 | 54.0 | 2055 |
| 346CEB | 3/4 X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts (SGB and SGBC only) | ||||
| 348CEB | 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts | ||||
| 346CESB | 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts | ||||
| SGBEPK | Bolt on endplates for SGB | ||||
| THSGBEPK | Bolt on endplates for THSGB | ||||
| HK90 | Optional 90" Hose Kit c/w Flat Faced Couplers (high dump only) | ||||
| HK9090 | Optional 90" Hose Kit c/w 90° Flat Faced Couplers (high dump only) | ||||
| SHMK | Optional Spring Hose Mount Kit (high dump only) |
