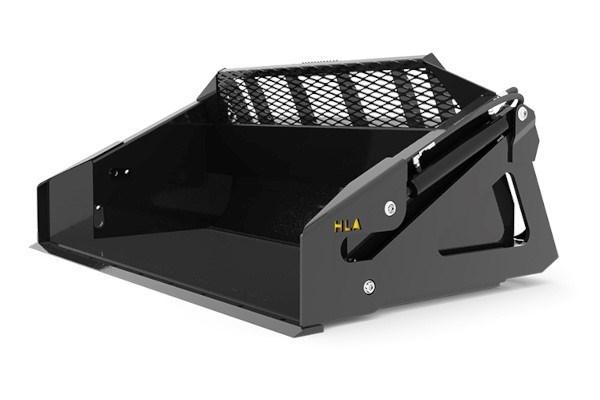

HLA Attachments High Dump Bucket

New Equipment / HLA Attachments / Mighty Minis / High Dump Bucket

Double tap to zoom

Features
Specifications

Features

High dump bucket increases dump out height up to 48"
Exclusive flat bottom bucket design allows for easier clean out & no capacity sacrifice
Compact 28" deep, 21" high
Standard 39" deep, 29" high
HV 39" deep, 33" high
Soft Stop Cylinder for reduced vibration
Drilled for standard bolt on cutting edge

Specifications

Part Number	Description	OUTSIDE WIDTH INCHES	STRUCK CAP. CU. FT.	SAE HEAPED CAP. CU. FT.	APPROX. WEIGHT LBS.
HRBC36	36" High Dump Bucket Compact	36	5.3	6.7	530
HRBC42	42" High Dump Bucket Compact	42	6.5	8.1	565
HRBC48	48" High Dump Bucket Compact	48	7.4	9.6	595
HRBC54	54" High Dump Bucket Compact	54	8.4	11	625
HRBC60	60" High Dump Bucket Compact	60	9.5	12.5	655
HK90	Optional 90" Hose Kit c/w Flat Faced Couplers
HK9090	Optional 90" Hose Kit c/w 90° Flat Faced Couplers
SHMK	Optional Spring Hose Mount Kit
