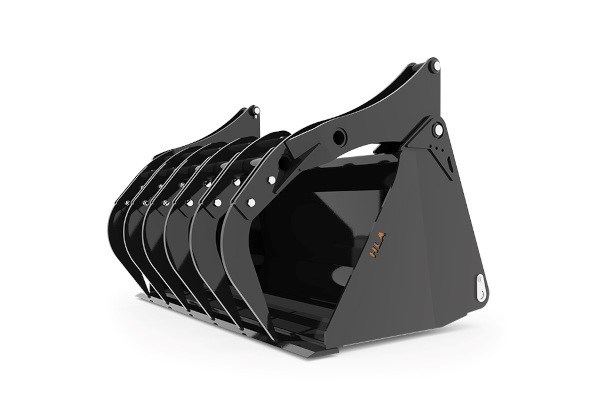

HLA Attachments Silage Grapple Bucket

New Equipment / HLA Attachments / Silage / Silage Grapple Bucket

Double tap to zoom

Features
Specifications

Features

Heavy duty grapple integrated into the bucket design
Strategic pivoting arc design on the grapple for more power and less disturbance of the bunk silo face
3 X 16 cylinders with 1-½" diameter pins
2" diameter pivot pins on grapple
For outside width add 2" to inside width column.
3/4" AR400 bolt on grapple teeth

Specifications

Part Number	Description	INSIDE WIDTH INCHES	STRUCK CAP. CU. FT.	HEAPED CAP. CU. FT.	APPROX. WEIGHT LBS.
MBHVSG72	72" Silage Grapple Bucket	72	27.3	39.5	1555
MBHVSG84	84" Silage Grapple Bucket	84	31.8	46.2	1730
MBHVSG96	96" Silage Grapple Bucket	96	36.3	52.9	1915
THMBHVSG96	96" Telehandler Silage Grapple Bucket	96	59.4	93	2260
MBHVSG108	108" Silage Grapple Bucket	108	40.9	59.7	2195
THMBHVSG108	108" Telehandler Silage Grapple Bucket	108	68.1	104.6	2435
HK90	Optional 90" Hose Kit c/w Flat Faced Couplers
HK9090	Optional 90" Hose Kit c/w 90° Flat Faced Couplers
SHMK	Optional Spring Hose Mount Kit
346CEB	Optional 3/4 X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
SG72SG	Optional Bolt On Guard for MBHVSG72				35
SG84SG	Optional Bolt On Guard for MBHVSG84				40
SG96SG	Optional Bolt On Guard for MBHVSG96				50
SG108SG	Optional Bolt On Guard for MBHVSG108				55
348CEB	Optional 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
346CESB	Optional 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts
RTMBK	Optional Knock On Ripper Teeth c/w Weld On Adapter & Flex Pin (not available for THMBHVSG models)
