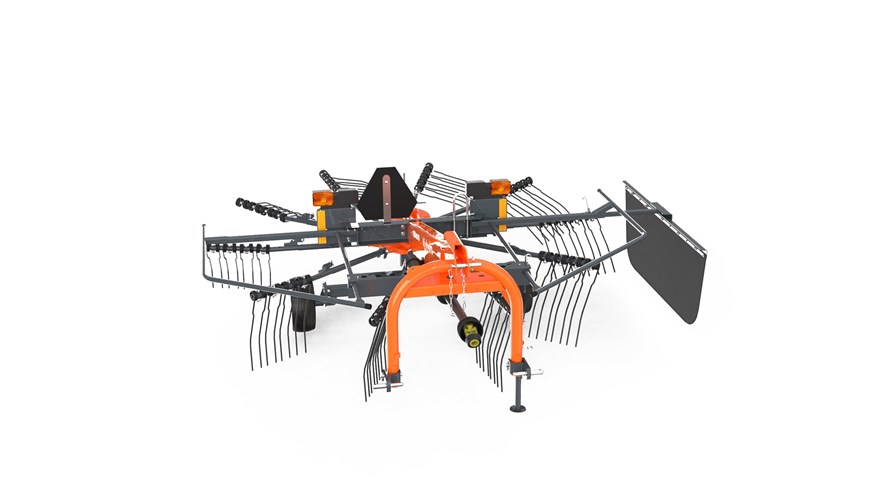

RA1035

RA100, RA200 Series
The drawbar height is adjustable to accommodate 12 different tractor drawbar positions, ensuring proper rake wheel angles and consistent performance across a wide range of tractor setups.

RA1000, RA2000 Series
All Kubota FarmLine rakes feature curved tine arms for noticeably cleaner raking and optimized windrow formation. This design improves the approach angle of the tines to the incoming crop, providing a cleaner lift and smoother transfer of material into the formed windrow.

RA1000, RA2000 Series
With up to 13 double tangential tine arms and up to 5 double tines per arm, Kubota rakes are built for maximum raking performance. High tine frequency delivers clean raking results even at reduced PTO rpm and higher forward speeds. An infinitely adjustable cam track allows precise fine-tuning to achieve optimal raking action and consistent swath formation based on crop conditions.

RA100, RA200 Series
Each rake wheel is equipped with independent suspension, making the RA100 & RA200 ideal for rough or uneven hay fields. This allows every wheel to follow ground contours independently for cleaner raking and more uniform windrows.

RA100, RA200 Series
The 1000 & 2000 Series Kubota Rotary Rakes are equipped with heavy-duty 0.35" - 0.39" wire diameter tines, providing exceptional strength and long-term durability, even in demanding field conditions.

RA100, RA200 Series
Independent wing cylinder lockouts allow for single-sided raking and left or right only raking, while providing a secure transport mode when both sides are engaged, improving flexibility in the field and stability on the road.

RA100 Series
Single and dual kicker wheel options help move material that would otherwise remain in place, improving crop flow and ensuring a more complete, consistent windrow.

RA1000 Series
Designed for smaller raking operations, the Kubota 1000 Series Rotary Rakes are well suited for lower-horsepower tractors while still delivering performance comparable to higher-spec machines. With both a pivoting three-point linkage version and a trailed version available, there’s a model to meet a wide range of needs, from flat ground to steep hillsides.

RA1000 Series
Kubota’s FarmLine rakes feature oil-immersed cam discs, guide rollers, and tine bearings. This design significantly reduces maintenance while ensuring smooth, reliable operation of critical components.

RA200 Series
The RA 200 Series features easy-to-use multi-point adjustments that allow for precise windrow formation. Simple pin adjustments and the implement jack make setup quick and accurate for changing conditions.

RA2000 Series
Kubota’s ProLine rakes feature a drive system with oil-immersed pinion and crown wheels. The fully enclosed gearbox design ensures constant lubrication, making the entire system virtually maintenance-free and highly reliable.

RA2000 Series
Kubota rakes equipped with the TerraLink Quattro flexibility system are able to closely follow a wide variety of ground contours. This improves crop pickup consistency and helps maintain clean, uniform windrows across uneven terrain.
