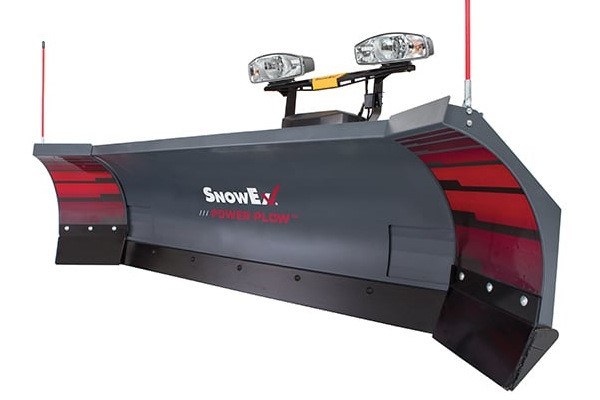

SnowEx 8100PP

Double tap to zoom



Features

Variable Straight Blade Modes

Use compact mode for transport or plowing narrow areas, or expand the wings to make extra wide passes.

BUCKET BLADE Scoop Mode

Angle the wings forward to put the POWER PLOW in scoop mode and carry up to 30% more snow with every pass.

Windrowing Position

When angled for windrowing, the leading wing directs more snow into the moldboard to eliminate spill-off.

Cornering Performance

Fully angle while in scoop position to maintain a full load of snow when maneuvering around obstacles.

Full-Trip Moldboard

A full-trip moldboard with four coil springs helps protect you, your plow and your truck when striking obstacles.

Strong As They Come

SnowEx® plows aren’t just built to take on snow, but to utterly defeat the most demanding snow removal conditions you’ll ever encounter. It starts with high strength, low alloy steel that can take a beating without beating up your truck. Each plow features solid welded reinforcement ribs combined with a formed base channel with multiple angles to add torsional strength and prevent twisting under heavy loads. And robotically welded headgear ensures quality and consistency on every plow.

Steel Cutting Edge

A 6" hardened steel cutting edge provides long-lasting performance and delivers a clean scraping action.

Easy Access Components Cover

Hydraulic components are protected with a durable poly cover that is easy to remove for quick maintenance access.

Pressure Relief for Wings

Plow wings feature built-in pressure relief to give upon impact.

Specifications

Models77750
Blade Width8' - 10'
MODEL8100PP
Moldboard OptionsPowder-Coated Steel
Blade TypeAdjustable Winged Blade
Vehicle CompatibilityClass 2-5 Trucks & Tractors
Approx. Weight*970 lbs
Plowing Width (Straight)96" - Compact
105" - BUCKET BLADE™
120" - WIDE PASS
Plowing Width (Full Angle)85.6" - Compact
93.4" - BUCKET BLADE
95.1" - Windrow
106.2" - WIDE PASS
Blade Height31"
Angle Cylinders1½"
Cutting EdgeBlade: ½" x 6"
Wing: ¼" x 10"
Blade ThicknessBlade: 12 ga
Wing: 11 ga
Reinforcement Ribs4
Trip Springs4 steel
*Does not include vehicle mount (28 lb - 145 lb weight range). Please refer to the Power Match program for specific vehicle applications.
