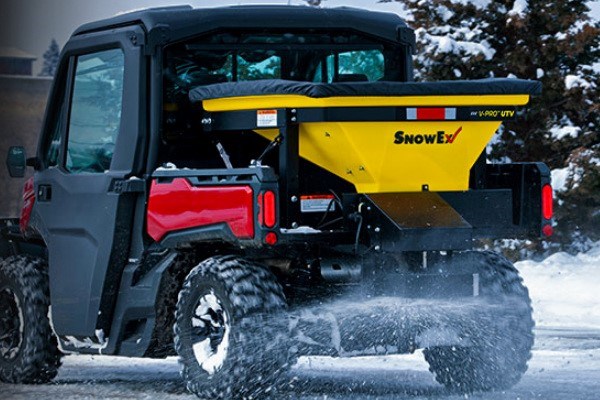

SnowEx V-Pro™ UTV 32200

Double tap to zoom



Features

INVERTED V / VIBRATOR

Patented system of a vibrator attached to a solid steel inverted "V" baffle provides a consistent flow of bulk materials to the auger.

AUGER TRANSMISSION

Transverse auger transmission powers material through the spreader easily and efficiently.

  • Compact, independent weather-tight patented motor transmission.
  • Heavy-duty solid steel construction, providing maximum torque.
  • Quietly delivers power to the auger for controlled, positive feed of material.



TOP SCREEN

Ensures material that enters the hopper is of consistent size by breaking up any clumps and filtering out large debris. 5/16" steel rod construction with grid pattern

SPINNER GUARD

Positioned above and below the spinner, the guard helps protect from contact.

DESIGNED TO FIT UTV BEDS

Specifically designed to fit the bed size and weight capacities of most UTV brands and models.

DUAL VARIABLE-SPEED CONTROL

Allows for variable control of spinner and auger speeds for precise material delivery, whether at low or high output. Features auto reverse and integrates with accessories (including pre-wet).

REMOVABLE CHUTE ASSEMBLY

Gain easy access to UTV hitch by removing the spinner assembly.

FITTED TARP

A tarp fitted to the spreader’s dimensions protects material from outside weather elements.

SPINNER DRIVE ASSEMBLY

Compact, independent weather-tight patented motor transmission

Specifications

MODEL32200
VEHICLE COMPATIBILITYUTVs
MATERIAL COMPATIBILITYBulk Salt, 50/50 Salt/Sand Mix, Bagged Ice Melters, Calcium Chloride Pellets, Calcium Flakes, Salt Brine
CAPACITY (VOLUME)11.0 cu ft
SPREADING WIDTHUp to 30'
APPROX. WEIGHT (EMPTY)280 lb
OVERALL DIMENSIONS (LXWXH)64" x 48.5" x 27"
HOPPER DIMENSIONS (LXW)53" x 48.5"
FLOOR LENGTH45"
FLOOR WIDTH34"
CAPACITY (WEIGHT)*880 lb
MOTORSDual Electric, 12V, Sealed
SPINNER12"
AUGER3" transverse high-flow auger
BRAKE LIGHTNo

*Material weight equates to approximately 2,160 lb/cu yd or 80 lb/cu ft (1 bag of rock salt).
