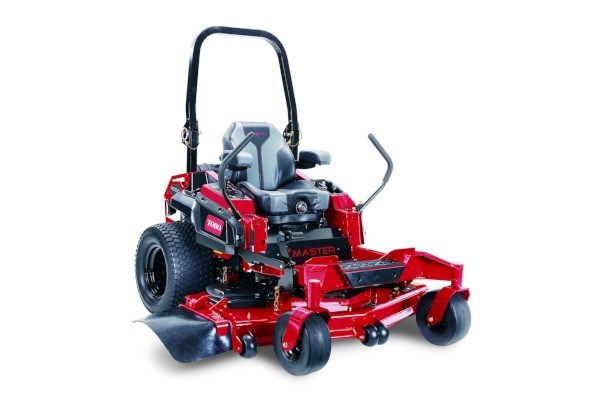

Toro 4000 Series 52 in. (132 cm) 25.5 hp 852cc (74050)

Double tap to zoom



Features

26" Voodoo Trac™ Drive Tires
Get the ultimate in agressive tread and styling and survey the task from a higher-vantage-point with 26" Voodoo Trac™ Drive Tires.

LED Headlights
Powerful illumination for after-hours work.

Up to 12 MPH
Get more done with ground speeds up to 12 MPH without reducing cut quality.

TURBO FORCE® Cutting Deck
Enjoy years of reliable performance with a fully tubular frame and 7-gauge steel deck.

Rubber Discharge Chute
Trim close without damaging landscape structures or your chute.

Deck Step Plate
Keep your grip and remove excess mud from your shoes with a deck step plate.

Clear Sightline to Rear Tires
Clear sightline to rear tires for enhanced control so you can clear a path without tire spin.

Dual Capture Anti-Scalp Rollers
Intelligently engineered dual capture anti-scalp rollers ensure the highest quality of cut in the harshest terrain you can throw at it.

Phone and Cup Holder
Keep your phone and drink at arm's reach.

USB Ports
USB ports to help you stay charged on the job.

Specifications

Air FilterHeavy-Duty Donaldson® Canister-Style Air Cleaner
Blade Tip Speed18,500 ft/min / 5,638 m/min
Blades0.204 in. (0.5 cm) heat-treated steel
Box Dimensions91 in. x 70 in. x 52.5 in. / 231.1 cm x 177.8 cm x 133.4 cm
CARB CompliantNot CARB Compliant
Caster Tires15 in. x 6.5 in. - 6 in. (38 x 16.5 - 15.2 cm) Pneumatic
ClutchElectromagnetic
Deck Design52" (132.1 cm) 7-Gauge High-Strength Steel TURBO FORCE®
Deck Material7 Gauge High-Strength Steel
Deck Size52 in / 132 cm
Discharge ChuteRubber
Drive TiresVoodoo Trac™ 26 in. x 10.5 in. - 12 in. (66 cm x 26.7 cm - 30.5 cm)
Engine25.5 hp* Kawasaki FX801V (852 cc) with Heavy-Duty Donaldson® Canister-Style Air Cleaner
Engine BrandKawasaki
Engine Displacement (cc)852 cc
Engine Horsepower25.5 hp
Foot Operated Height of CutStandard
Forward Ground/Transport SpeedUp to 12.0 mph / 19.3 kph
Fuel Capacity10.5 gal. / 39.7 L / 42 Qt.
Fuel TypeGasoline
Height of Cut1.5 - 5.5 in. / 3.8 - 14.0 cm
Hour MeterStandard
LightingLED Headlights
Product FeaturesDeluxe Seat, Electric Start, Gas Powered, Hour Meter
Product TypeZero Turn Mowers
Roll-Over Protection System (ROPS)Folding; Standard
SeatHandcrafted Deluxe Suspension Seat with Arm Rests
Spindle BearingsMaintenance-free
Spindle Housing9 in / 2.9 cm Diameter Aluminum
Start TypeElectric
Steering Controls1.4" (3.6 cm) Diameter Grips; Adjustable, Dampened
TransmissionZT-4400 Integrated Pumps and Wheel Motors
Weight1,174 lbs / 532.5 kg
