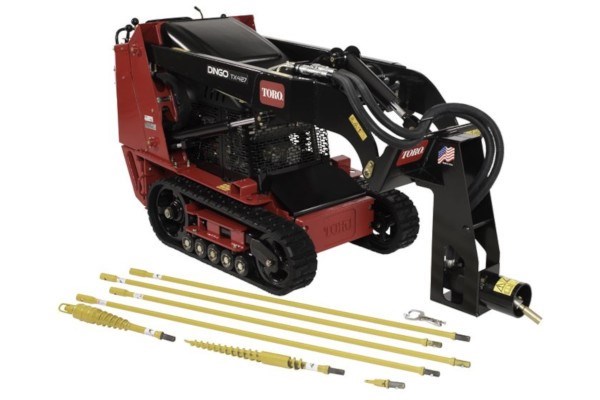

Toro Dingo Bore Drive Head (22420)

New Equipment / Toro / Professional Contractor / Compact Utility Loader Attachments / Attachments / Dingo Bore Drive Head (22420)

Double tap to zoom



Features

  • Universal joint keeps rods horizontal
  • 19" working depth
  • Accommodates pipe up to 3" diameter
  • Rod and reamer kit sold separately



Bore Depth
Bore up to 19" below ground surface

Universal Joint
Increases productivity by allowing you to keep rods in a horizontal digging position in the toughest soil conditions.

Specifications

Construction Fabricated, welded steel frame
Height (cm) 63.5
Height (inches) 25
Length (cm) 56
Length (inches) 22
Mounting Frame Dingo® quick-attach mount plate, fabricated, welded base
Quick Couplers Dripless, flush face quick couplers
Rated Pressure 3000 psi (207 bar)
Rod Connection Hex coupler with snap button
Torque 430 ft/lb at 2000 psi (59 KgVm at 138 bar)
Weight (kg) 54
Weight (lbs) 120
Width (cm) 61
Width (inches) 24
Working Width (inches) 6
