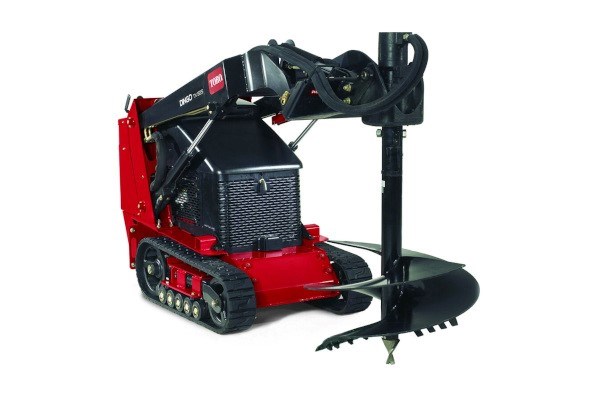

Toro High Torque Auger Power Head (22805)

New Equipment / Toro / Professional Contractor / Compact Utility Loader Attachments / Attachments / High Torque Auger Power Head (22805)

Double tap to zoom

High Torque Auger Power Head (22805)

Attachments

Overview:

In any drive head, there is a tradeoff between torque (power) and speed (revolutions per minute). The high torque head provides a large amount of torque to the auger at a slower speed. The high torque translates into the Dingo's capability to dig 30" (76.2 cm) holes up to 6' (1.8 m) deep in clay, gravel, sandstone and many other conditions where lower torque heads get stuck.

Get a Quote

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Features
Specifications

Features

Designed for large auger bits up to 30" (76cm)
High Torque (Power) Drive for the most demanding conditions
Direct planetary drive

Horizontal Lockout
The head locks in the horizontal position for usage with the Toro Cement Bowl, Capstand Adapter and more.

High Torque Drive
The high torque drive provides a tremendous 1515 ft-lbs of torque at 3000 psi with a bit speed of 57 rpm to break through the toughest ground.

Planetary Gear Drive
The planetary gear drive provides high speeds and maximum torque to the auger, while transmitting minimal stress on the auger head components. The planetary gear drive insures the longevity of the hydraulic motor.

Specifications

Auger Speed	57 rpm at 11 gpm (41.6 lpm), 95% efficiency
Construction	Fabricated, welded steel frame
Height (cm)	59
Height (inches)	23
Length (cm)	40
Length (inches)	16
Mounting Frame	Dingo® quick-attach mount plate, fabricated, welded base
Quick Couplers	Dripless, flush face quick couplers
Shaft (cm)	6.5
Shaft (inches)	2.6
Torque	1515 ft/lb at 3000psi, at 11 gpm (461 m-kg at 207 bar, at 72 lpm)
Weight (kg)	83
Weight (lbs)	182
Width (cm)	62
Width (inches)	24
