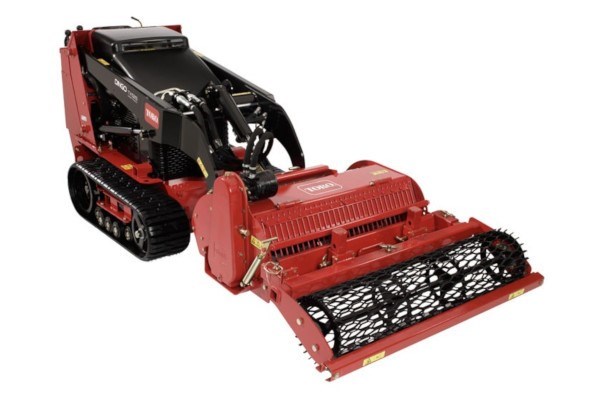

Toro Soil Cultivator (23102)

New Equipment / Toro / Professional Contractor / Compact Utility Loader Attachments / Attachments / Soil Cultivator (23102)

Double tap to zoom



Features

Offset Wire Mesh Rear Roller
Eliminates ridges between machine passes, and ensures for a uniform seed bed. Creates dimpled surface for maximum seed germination and root penetration.

High Filtering Grate
The grate permits only loose soil to pass through. Rocks, sticks, clods and debris are buried below the fresh tilled soil.

Deep Soil Cultivation
Tiller cultivates soil up to 5.5" (14 cm) deep for maximum root penetration and healthy turf. Contractor can choose optimal depth for seed bed preparation.

Specifications

Blade Adjustment Mechanical adjustment
Construction Fabricated, welded steel frame
Depth Control Mechanical adjustment
Height (cm) 53
Height (inches) 21
Hydraulic Flow 7-14 gpm (26.5-53 lpm)
Length (cm) 130
Length (inches) 51
Mounting Frame Dingo® quick-attach mount plate, fabricated, welded base
Number of Blades 20 "V" non-panning blades
Quick Couplers Dripless, flush face quick couplers
Rated Pressure 3000 psi (206.7 bar)
Roller Adjustment Mechanical adjustment
Rotar - Outside Diameter (cm) 28.6
Rotar - Outside Diameter (inches) 11.25
Weight (kg) 250
Weight (lbs) 550
Width (cm) 130
Width (inches) 51
Working Depth (cm) 14
Working Depth (inches) 5.5
Working Width (cm) 91.4
Working Width (inches) 36
