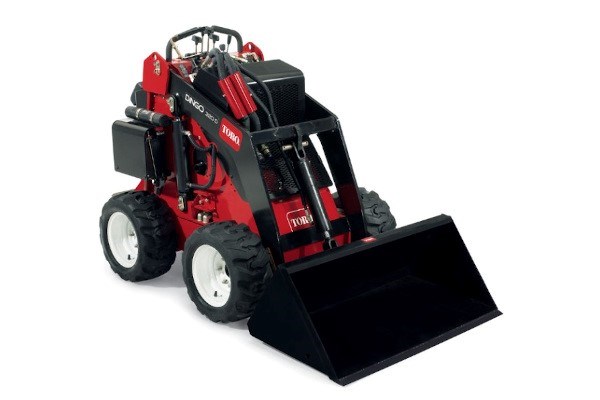

Toro Dingo® 320-D Mini Skid Steer (22337CP)

Double tap to zoom



Features

4-Paw® Independent 4-Wheel Drive
Four independent wheel motors deliver hydraulic flow and pressure to all our wheels for improved traction and mobility. Fewer moving parts also mean less maintenance.

Two Transport Speeds
Low speed sends more hydraulic power to the attachment and high speed sends more power to the wheels. The low speed option also helps new operators shorten their learning curve.

Highly Maneuverable
Short wheelbase design offers excellent maneuverability. Get into tight spaces where only hand labor could go before.

Fingertip Controls
Easy-to-reach 4-stick fingertip hand controls enable all functions from the operator position. The operator controls all movements of the machine and attachments with his fingertips.

Specifications

Air FilterTwo-stage, heavy-duty, remote
Cooling SystemLiquid Cooled
Dump Angle34 deg
Dump Height47 in. / 119.3 cm
Engine Discplacement719 cc (43.88 cu. in.)
Engine Horsepower25 hp (18.6 kW) @ 3,600 rpm
Engine MakeKubota
Engine ModelD722E3B
Fuel Tank4 gal. / 15.1 L
Fuel TypeDiesel
Ground Clearance5.8 in. / 14.7 cm
Ground Speed - ForwardUp to 3 mph / 4.8 km/h
Ground Speed - ReverseUp to 3 mph / 4.8 km/h
Height48.7 in. / 123.7 cm
Hinge Pin Height66 in. / 167.6 cm
Hydraulic High-Flow Hydraulic Circuit10.8 GPM
Hydraulic Low-Flow Hydraulic Circuit4 GPM
Hydraulic Pressure3,250 PSI
Length62 in. / 157.5 cm
Length - With Bucket82.2 in. / 208.8 cm
Loader ArmsRadial
Max Operating Height91.2 in. / 231.6 cm
Oil Capacity3.4 qt / 3.2 L
Rated Operating Capacity*524 lbs / 237.6 kg
Reach - Fully Raised28 in. / 71.1 cm
Reservoir Capacity14.8 gal. / 56 L
Tip Capacity1,048 lbs / 475 kg
Track Length96.6 in. / 245.3 cm
Track Width9.5 in. / 24.1 cm
Weight1,722 lbs / 781 kg
Wheelbase28 in. / 71.1 cm
Width - With Narrow Tires35 in. / 88.9 cm
Width - With Standard Tires40.5 in. / 102.8 cm
