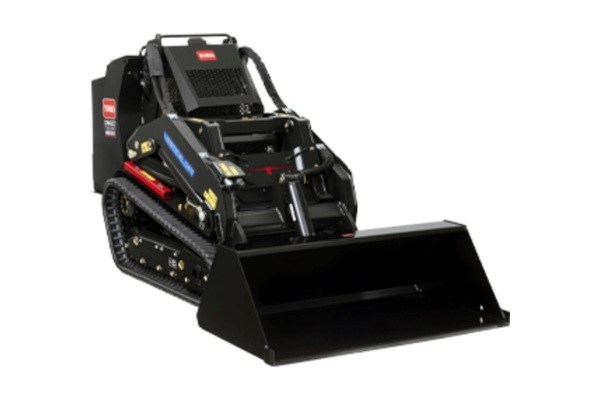

Toro Dingo® TX 1000 TURBO Limited Edition Track Loader, Wide (22588LE)
Double tap to zoom
Dingo® TX 1000 TURBO Limited Edition Track Loader, Wide (22588LE)
Dingo® TX 1000 TURBO Limited Edition
Overview:
As we near almost a decade of excellence with the Dingo TX 1000, Toro is thrilled to unveil a LIMITED EDITION model. This special release celebrates the groundbreaking compact utility loader that revolutionized the industry in 1998. From its initial launch to the recent introduction of the Dingo TX 1000 TURBO, Toro has consistently pushed the boundaries of innovation.
This limited edition model is more than just a machine; it's a testament to our commitment to quality, performance, and the enduring legacy of the Dingo. Join us in celebrating this milestone and experience the power and versatility of the Dingo TX 1000 TURBO Limited Edition.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Smart Power®
Smart Power allows the machine to run more efficient by automatically adjusting traction speed to maximize engine, auxiliary, and traction torque.
Traction Control System
Toro's patented traction control system allows intuitive user operation for all skill levels now includes the integration of a digital display.
Maximum Height & Reach
The 81” (206 cm) hinge pin height allows attachments to easily clear the side of 30-yard dumpsters or one-ton trucks.
Easy Operation
The auxiliary foot pedal maintains hydraulic flow to the attachment, freeing the operator's hands to focus on ground speed an attachment positioning.
Specifications
| Air Filter | Remote: Primary and Safety Elements |
| Cooling System | Combo Crossflow Radiator and Oil Cooler |
| Dump Angle | 40 deg |
| Dump Height | 60.3 in. / 153.2 cm |
| Engine Horsepower | 24.7 hp (18.4 kW) |
| Engine Make | Yanmar |
| Engine Model | 3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant |
| Fuel Tank | 10.25 gal. / 38.8 L |
| Fuel Type | Diesel |
| Ground Clearance | 5.9 in. / 14.9 cm |
| Ground Pressure | 4.1 psi |
| Ground Speed - Forward | Up to 4.1 mph / 6.5 kph |
| Ground Speed - Reverse | Up to 4.1 mph / 6.5 kph |
| Height | 54.5 in. / 138.4 cm |
| Height - With Bucket | 54.5 in. / 138.4 cm |
| Hinge Pin Height | 81 in. / 205.7 cm |
| Hydraulic Flow - Traction | 3 - 12.9 LPM |
| Hydraulic Pressure | 3,000 psi |
| Length | 83 in. / 210.8 cm |
| Length - With Bucket | 104 in. / 264.2 cm |
| Max Operating Height | 106.2 in. / 269.7 cm |
| Oil Capacity | 3.8 qt / 3.6 L |
| Rated Operating Capacity* | 1,000 lbs / 454 kg |
| Reach - Fully Raised | 23.3 in. / 59.2 cm |
| Reservoir Capacity | 8.6 gal. / 32.5 L |
| Track Width | 9.1 in. / 23.1 cm |
| Tracks | MERT Track With Turf Friendly Style Tread |
| Traction | Dual Hydrostatic Pump |
| Weight | 2,911 lbs / 1,320 kg |
| Wheelbase | 39 in. / 99.0 cm |
| Width | 39.9 in. / 101.3 cm |
| Width - With Bucket | 42.2 in. / 107.2 cm |
Disclaimer
*Per ISO 14397-1**As rated by the engine manufacturer. Starting January 1, 2025 the specifications on this engine will change to 23.2hp and 17.3kW
