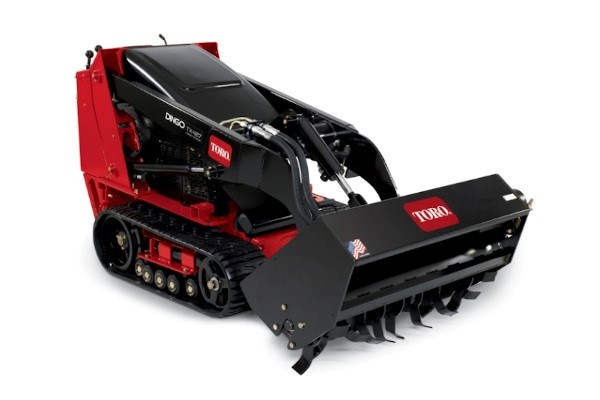

Toro Dingo® TX 427 Track Loader, Wide (22322)

Double tap to zoom



Features

Simple Controls
Three simple controls let operators get to work fast.

Low Impact Footprint
Long-lasting, aramid reinforced tracks disperse weight evenly for a light footprint on tur, while delivering better traction in sandy or wet ground conditions.

4-Pump Hydraulic System
4-pump hydraulic system lets you simultaneously operate the loader, bucket, traction, and auxiliary drives for increased operator efficiency. This system directs hydraulic power precisely where you need it!

Air-Cooled Gasoline Engine
A 27 hp (20 kw) Kohler® engine provides the necessary power to drive any one of the multitude of Toro attachments available for the Dingo TX.

Exclusive TX Track Drive
Low center of gravity and large footprint increase stability on side hills and provide smooth operation over rugged terrain; eliminates tire ruts and flat tires.

Specifications

Air FilterTwo-stage, heavy-duty, remote
Cooling SystemAir Cooled
Dump Angle38 deg
Dump Height46.1 in. / 117.0 cm
Engine Discplacement725 cc (44 cu. in.)
Engine Horsepower25 hp (18.6 kW) @ 3,600 rpm
Engine MakeKohler
Engine ModelCommand Pro Series CH740
Fuel Tank6 gal. / 22.7 L
Fuel TypeGasoline
Ground Clearance4.6 in. / 11.56 cm
Ground Pressure3.5 psi
Ground Speed - ForwardUp to 4.5 mph / 7.2 km/h
Ground Speed - ReverseUp to 2.0 mph / 3.2 km/h
Height46.1 in. / 117.0 cm
Height - With Bucket46.1 in. / 117.0 cm
Hinge Pin Height65.8 in. / 167.1 cm
Hydraulic Flow - Auxiliary11.4 GPM
Hydraulic Flow - Traction16.9 GPM
Hydraulic Pressure3,000 psi
Length70.7 in. / 179.5 cm
Length - With Bucket92 in. / 233.6 cm
Loader ArmsRadial
Max Operating Height90.1 in. / 228.8 cm
Oil Capacity2 qt / 1.9 L
Rated Operating Capacity*535 lbs / 242.67 kg
Reach - Fully Raised21.8 in. / 55.3 cm
Reservoir Capacity10 gal. / 37.8 L
Tip Capacity1,530 lbs / 694 kg
Track Length96.6 in. / 245.3 cm
Track Width9.5 in. / 24.1 cm
TracksSprocket-drive, 10 road wheels per side
TractionDual Hydrostatic Pump
Weight1,990 lbs / 903 kg
Wheelbase31.2 in. / 79.2 cm
Width41 in. / 104.1 cm
Width - With Bucket41 in. / 104.1 cm
