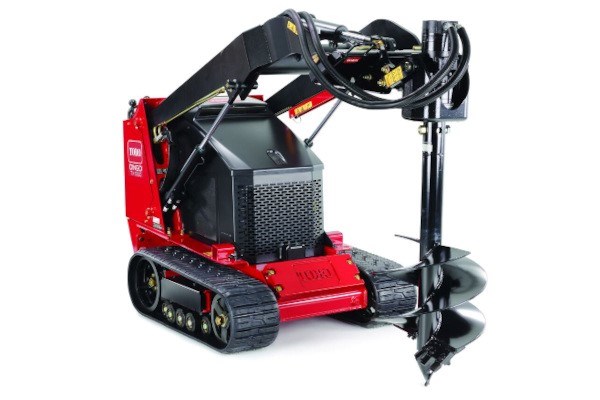

Toro Dingo® TX 550 Track Loader, Wide (22377)

Double tap to zoom



Features

Diesel Power
he 23.3 hp (17.3 kw) Kubota diesel engines torque curve combined with the added auxiliary hp provide attachments the added power tough jobs require.

Hydraulic Performance
Offers power similar to larger machines without the added bulk.

Compact Size
The Dingo TX 550 is the right size for jobs that require more than handheld tools, in spaces that don’t allow for bulky machinery.

Small Footprint
The lightweight, narrow design produces minimal turf disturbance.

Easy Operation
Intuitive controls allow both first-time users and experienced operators to work quickly and efficiently.

Walk-Behind
The only walk-behind loader in its class, the Dingo TX 550 is designed for simple maneuverability and unbeatable precision in tight spaces.

Built on Success
The Dingo TX 550 is built on a 20-year foundation of durability, longevity and dependability.

Specifications

Air FilterTwo-stage, heavy-duty, remote
Cooling SystemLiquid Cooled
Dump Angle38 deg
Dump Height46.1 in. / 117.0 cm
Engine Displacement901 cc (55 cu. in.)
Engine Horsepower24.8 hp (18.5 kW) @ 3,200 rpm
Engine MakeKubota
Engine ModelD902E3B
Fuel Tank6 gal. / 22.7 L
Fuel TypeDiesel
Ground Clearance4.6 in. / 11.56 cm
Ground Pressure3.4 psi
Ground Speed - ForwardUp to 4.5 mph / 7.2 kph
Ground Speed - ReverseUp to 2.0 mph / 3.2 kph
Height46.1 in. / 117.0 cm
Height - With Bucket46.1 in. / 117.0 cm
Hinge Pin Height65.8 in. / 167.1 cm
Hydraulic Flow - Auxiliary13.8 GPM
Hydraulic Flow - Traction16.9 GPM
Hydraulic Pressure3,000 psi
Length70.7 in. / 179.5 cm
Length - With Bucket92 in. / 233.6 cm
Loader ArmsRadial
Max Operating Height90.1 in. / 228.8 cm
Oil Capacity3.8 qt / 3.6 L
Rated Operating Capacity*553 lbs / 250.8 kg
Reach - Fully Raised21.8 in. / 55.3 cm
Reservoir Capacity10 gal. / 37.8 L
Tip Capacity1,530 lbs / 694 kg
Track Length96.6 in. / 245.3 cm
Track Width9.5 in. / 24.1 cm
TracksSprocket-drive, 10 road wheels per side
TractionDual Hydrostatic Pump
Weight2,013 lbs/ 913 kg
Wheelbase31.2 in. / 79.2 cm
Width41 in. / 104.1 cm
Width - With Bucket41 in. / 104.1 cm
