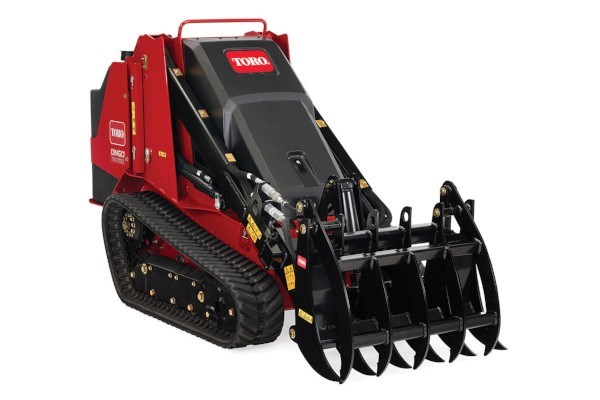

Toro Dingo® TX 700 Track Loader, Wide (22352)

Double tap to zoom



Features

Smaller Footprint
Packs 700 lbs. of rated operating capacity in a smaller footprint, making it ideal for projects where homeowners and contractors need to reach tight areas or work in confined spaces.

Easy Operation
Featuring patented Dingo TX 1000 traction controls and a dedicated stand-on platform, the Dingo TX 700 is easy to use and offers increased comfort and visibility to the operator.

Gentle On Turf
Available in both narrow track and wide track configurations, the Dingo TX 700 is equipped with the industry-tested Camso track system — which features a less aggressive tread pattern that minimizes turf damage.

Job Versatility
Compatible with dozens of attachments, including multiple types of buckets, adjustable forks, a grapple, leveler, utility blade and more, the Dingo TX 700 can be used for a wide range of jobs.

Specifications

Air FilterDual Element
Cooling SystemCombo Downflow Radiator and Cooler Oil Cooler
Dump Angle42 deg
Dump Height52.9 in. / 134.4 cm
Engine Discplacement1262 cc (77 cu.in.)
Engine Horsepower24.7 hp (18 kW) @ 3,000 rpm
Engine MakeYanmar
Engine Model3TNV80F
Fuel Tank5.5 gal. / 20.8 L
Fuel TypeDiesel
Ground Clearance5.25 in. / 13.3 cm
Ground Pressure8 psi
Ground Speed - ForwardUp to 4.3 mph / 7.0 km/h
Ground Speed - ReverseUp to 4 mph / 6.4 km/h
Height55.3 in. / 140.5 cm
Height - With Bucket55.3 in. / 140.5 cm
Hinge Pin Height73.5 in. / 186.7 cm
Hydraulic Flow - Auxiliary13.7 GPM
Hydraulic Flow - Traction14.5 GPM
Hydraulic Pressure3,000 psi
Length82 in. / 208.3 cm
Length - With Bucket102.8 in. / 261.3 cm
Loader ArmsRadial
Max Operating Height97 in. / 246.3 cm
Oil Capacity3.6 qt / 3.4 L
Rated Operating Capacity*708 lbs / 321.1 kg
Reach - Fully Raised31 in. / 78.7 cm
Reservoir Capacity10 gal. / 37.8 L
Tip Capacity2,023 lbs / 918 kg
Track Length9.1 in. / 23.1 cm
Track Width126.6 in. / 321.5 cm
TracksMERT Track With Turf Friendly Style Tread
TractionDual Hydrostatic Pump
Weight2,862 lbs / 1,298 kg
Wheelbase39 in. / 99.0 cm
Width40.2 in. / 102.1 cm
Width - With Bucket41.4 in. / 105.2 cm
