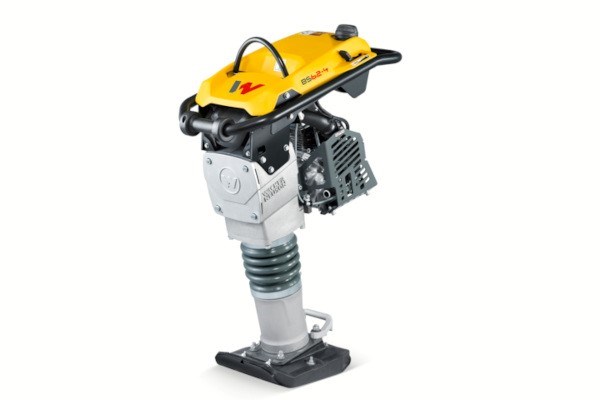

Wacker Neuson BS68-4Ab/28

Double tap to zoom



Features

Large stroke, high impact force

  • With their great lift height and high impact force, the 4 stroke rammers guarantee efficient work results.

Just one lever for starting, idling and stopping

  • The vibratory rammer can be operated very comfortably using just one lever. The choke is integrated in the lever.

Efficient air filter

  • With its large filter area, the air filter provides a very reliable filter efficiency with high capacity and thus a continuously high engine output.
  • The air cleaner housing is designed to keep dirt from falling into the air intake area when removing the filter. This protects the engine from dirt entering during maintenance.
  • The air cleaner cover must be opened with a tool: This should prevent the cover from being opened on a dusty construction site or the filter from being completely removed by the operator to work faster. Requiring the use of a tool should ensure that the vibratory rammer is brought to the workshop for air cleaner service.


Ergonomic guide handle

  • In the grip area of the guide handle it has an angled shape. This enables an ergonomic hold, which relieves the wrists.

Low oil warning indicator

  • When the engine is started with low oil, an LED lights up to indicate low oil.


More Features


MAINTENANCE

Honda engine

  • The four-stroke rammers are equipped with high-quality, high-performance Honda engines.
  • Honda has an international presence, so spare parts are readily available.

COMFORT

Large, sturdy lifting eye

  • The large, sturdy lifting eye makes transportation easier.


EFFICIENCY

EquipTrack

  • EquipTrack enables the complete and precise collection of operational data via a Bluetooth module for more efficient and more transparent processes on the construction site.
  • EquipTrack can be easily installed on the device, it is even possible to retrofit it without any problems.

Specifications

Model VariationsBS68-4Ab/28
Number of blows689 1/min 689 1/min
Area capacity2,174.3 ft2/h 202 m2/h
Forward Running0.7 fps 12 m/min
Power of impact4,271.4 lbf 19 kN
Length26.1 " 662 mm
Length Ramming Shoe13.4 " 340 mm
Width13.7 " 347 mm
Width Ramming Shoe11 " 280 mm
Height37.4 " 950 mm
Weight152.34 lb 69.1 kg
Operating weight154.3 lb 70 kg
Stroke at tamper2.5 " 63 mm
Display EquipmentBeacon
Operating elementsPushbutton OFF
HAV summation (average value)30.8 ft/s2 9.4 m/s2
HAV summation (Standard)EN 500-4
