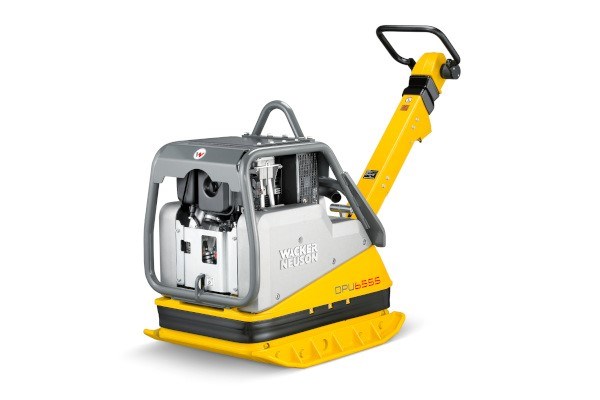

Wacker Neuson DPU6555Heh US

Double tap to zoom



Features

Sturdy and durable

  • The vibratory plate is made of heavy-duty, wear resistant materials. Due to this, it achieves a long service life. For example, the base plate is made of nodular cast iron (GJS700).
  • Even after a longer operating time, the vibratory plate reaches a high resale value. Investment in this machine is thus very economical.



Very good accessibility to all maintenance points

  • The unit offers good accessibility to all maintenance points. This saves time and costs during maintenance.



High surface performance

  • High compaction performance combined with a fast travel speed gives the vibratory plate a high surface performance, making it extremely efficient.



MORE FEATURES

Comfort

Center pole

  • The center pole is easily adjustable in height and can thus be adjusted very quickly to the size of the respective operator.
  • The sturdy, self-engaging center pole lock offers a very fast and reliable safeguard for transport. This saves time.



Intuitive guide bar with continuously adjustable speed.

  • A change of direction is possible with a high degree of comfort just by moving the handle. This way, the operator can keep working with both hands, without pressing additional buttons or cranking of handles.
  • The speed is infinitely adjustable.



Maintenance

Jump start pin

  • If the battery is discharged, the machine can be jump-started very quickly via a removable pin. It is not necessary to remove the battery cover in order to connect the starter cable with the battery. This saves time and effort.
  • Due to the spring mechanism, the pin is very well protected from contaminants and can be used quickly if required.

Specifications

Model VariationsDPU6555Heh US
Hydraulic fluid type
Exciter oil volume
Exciter oil type
Standard Support Plate
Hydraulic fluid volume
Centrifugal force14,613 lbf 65 kN
Area capacity12,916.8 ft2/h 1,200 m2/h
Gradeability46.6 % 46.6 %
Length Baseplate35.4 " 900 mm
Width28 " 710 mm
Width Baseplate21.7 " 550 mm
Height51.5 " 1,308 mm
Height Cover frame33.9 " 861 mm
Thickness Baseplate0.5 " 12 mm
Operating weight1,062.6 lb 482 kg
Ground clearance33.9 - 39.6 " 861 - 1,005 mm
Effective power14.1 hp 10.5 KW
Nominal Engine speed3,000 1/min 3,000 1/min
HAV summation (average value)8.2 ft/s2 2.5 m/s2
HAV summation (Standard)EN 500-4
