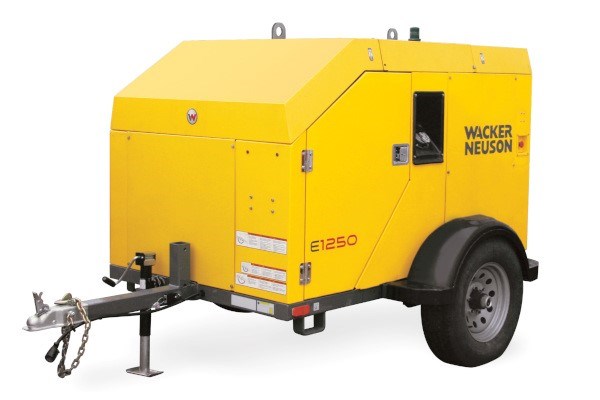

Wacker Neuson E1250S
Double tap to zoom
E1250S
E1250 Hydronic Heaters
Overview:
Standard diesel ground heater includes 3 kW Kubota liquid-cooled generator with wet-stacking protection, 2-point lift bail, dual-color performance monitoring strobe light, rear expansion ports and digital sensing of fuel and HTF pressure
Item Number 5200012355
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Powerful positive displacement pumps
- Positive displacement pumps allow for strong continuous flow and high head height.
MORE FEATURES
QUALITY
Heated control panel
- Heated 5-inch backlit display control panel shows machine status, GFCI protection and advanced diagnostics mode with large, low-voltage toggle switches
EFFICIENCY
Single hose reel
- Hose is on one reel and easily
PERFORMANCE
4.2 kW generator
- the E 1250 standard comes with a Kubota powered generator for remote locations and places with not access to shore power.
Specifications
| Model Variations | E1250S |
| Generator drive | direct |
| Capacity Thaw max. (Std) | 2,475.7 ft 2 230 m2 |
| Cooling fluid volume | 3 qt US 2.8 l |
| Generator Rating 1~ (Continuous) | 4.2 KW |
| Nominal Engine speed | 1,800 1/min |
| Effective power | 4 KW |
| Output frequency | 60 Hz |
| Output voltage | 120 V |
| Output current 1~ | 20 A |
| Capacity Air Heat max. (w/acc) | 203,589.8 ft 3 5,765 m3 |
| Capacity Frost max. (w/acc) | 11,248.4 ft 2 1,045 m2 |
| Capacity in concrete curing (with accessory) | 7,502.5 ft 2 697 m2 |
| Capacity Thaw max. (w/acc) | 3,767.4 ft 2 350 m2 |
| Nominal current | 15 A |
| Nominal voltage | 120 V |
| Quantity Circulation Loops, up | 1 |
| Capacity Thaw (Std) | 1,237.9 ft 2 115 m2 |
| Capacity in concrete curing (Standard) | 2,475.7 ft 2 230 m2 |
| Throughput per loop | 265 GPH US 1,003 L/hr |
| Heat transfer fluid (HTF) | 53.9 gal US 204 l |
| Hose pressure (normal operation) | 108.8 psi 7.5 bar |
| Heater, Net output (Propane) | |
| Heater, Net output (Diesel) | 36 KW |
| Heater, Net output (Natural Gas) | |
| Frost prevention (Standard) | 3,767.4 ft 2 350 m2 |
| Number of Hose Reels | 1 |
| Length | 140 " 3,556 mm |
| Gross Axle Weight Rating | 3,999.2 lb 1,814 kg |
| Width | 76 " 1,930 mm |
| Height | 72 " 1,829 mm |
| Operating weight | 3,106.3 lb 1,409 kg |
| Dry Weight | 3,329 lb 1,510 kg |
| Gross vehicular weight | 3,174.7 lb 1,440 kg |
| Lift Bail - quantity | 1 |
| Length hose | |
| Genset | yes |
| Temperature monitor | |
| Display Equipment | |
| Run Time (75 % Prime Load) | 90 hrs |
| Fuel Tank capacity | 71.1 gal US 269 l |
| Utilizable tank capacity | 68.2 gal US 258 l |
| Fuel Consumption no genset | 1 GPH US 3.8 L/hr |
| Fuel Consumption Natural Gas | |
| Fuel Consumption Propane | |
| Run Time (100 %) | 68 hrs |
| Brake | Electric brake |
| Hitch Type | Centrifugal Clutch |
| Tongue Weight, min. | 255.7 lb 116 kg |
| Tongue Weight, max. | 295.4 lb 134 kg |
| Tires | ST205/75R15 |
| Shipping weight | |
| Shipping weight with Trailer |
