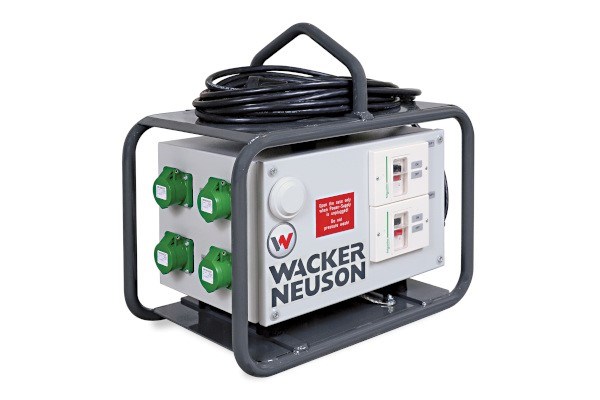

Wacker Neuson FUE 6/042/200

Double tap to zoom



Features

FUE Portable frequency converters: Light, sturdy and powerful

The frequency converters of the FUE series are distinguished by their light and compact design. Thanks to the aluminum design, they are easy to handle. With their high-quality electronics and the active cooling system, these machines deliver the highest output even in long-term application. The intelligent load and voltage management is particularly practical. It compensates for fluctuations of mains input voltage, incorrectly dimensioned extensions or appliances with greatly varying use of power.

Intelligent load and voltage management
The machine also manages uneven load and voltage requirements well and always delivers even output, even at the current limit.

MORE FEATURES

Completely maintenance-free

  • The machine is fully maintenance-free and thus particularly economical.

Specifications

Model Variations FUE 6/042/200
Nominal current 22 A
Nominla voltage 230 - 240 V
Nominla frequency 50 - 60 Hz
Nominal power (S) 5.2 kVA
Output current 52A
Output voltage 42 V
Phase 1~
Output phase 3~
Output frequency Hz 200
Output Nominal power (S) 3.8 kVA
Length 20.5"
Width 12.2 "
Height 19.4 "
Weight 65.04 lb
Operating indicator yes
Adjusting frequency Yes
Length Cable 32.8 Foot
Receptable Type CEE 3P 32A 4H 50V 100-200Hz
Number of Sockets 4, 0
Protection class I / Protective earthing
Degree of protection IP44
