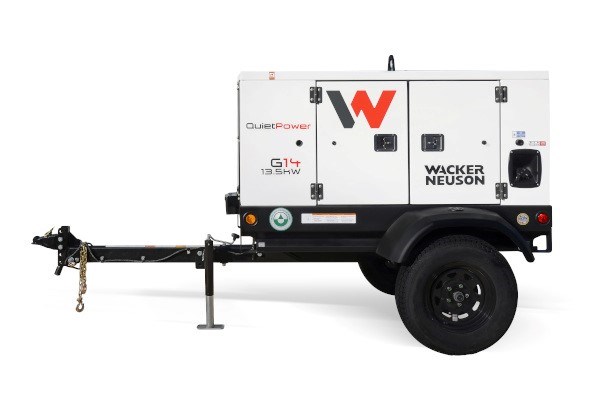

Wacker Neuson G14

Double tap to zoom



Features

G14 Long Run Time

  • Increased worksite productivity with 54.7 hours of run time



Programmable Controller

  • Easy to use controller
  • Allows for customizable start up and shut downs as well as monitors fuel usage and alarms when fuel is low
  • Heated display for cold weather conditions



Compact Cabinet and Easy to Transport

  • Optional trailer step gives a boost when using the lifting eye.
  • Multiple hitch options and trailer brake options.
  • 12 G14/G25/35's fit on a 53' flatbed. 10 G50's fit on a 53' flatbed.



Powerful Alternator

  • Class H insulation and separate excitation winding can handle heavier loads and hotter temperature
  • Fine tune voltage adjustment knob allows for fine tuning of voltage output



Fuel Tank and Containment

  • 110% fluid containment protects the environment in the event of engine fluid or fuel tank leaks.
  • light weight, polymer fuel tank is rust proof and easier to tow and transport.
  • CSA certified for Canadian applications.



MORE FEATURES

Efficiency

Cold Weather Options

  • Block heater and fuel filter heater keep the engine and fluids warm to allow for easy starting.
  • 1000 CCA battery and battery charger ensure the machine always starts.
  • Variable speed fan keeps warm air in the cabinet when the machine is cold and not up to operating temperature.



Serviceability

  • Removable doors make maintenance quick and easy.
  • Control panel door swings open for easy access to AVR and wiring.
  • 2 year / unlimited hour machine warranty | 4 year / 4,000 hour Kohler engine warranty.



Safety

Operator Safety

  • Lug door safety switch cuts voltage to the electrical lugs when the lug door is opened in order to prevent operator injury.
  • Emergency stop button is highly visible and easily accessible to keep the operator, the environment, and others safe in the event of an emergency.
  • Battery disconnect allows for battery voltage to be fully disconnected from the rest of the machine to eliminate parasitic draw and residual voltage.

Specifications

Model VariationsG14
Output current 1~56.2 A
Generator Rating 1~ (Continuous)13 kVA
Generator ManufacturerMecc Alte
Generator specificationAVR without Brushes
Motor typeDiesel engine
Cylinder3
Fuel typeWinter Blend Diesel No. 2
Exhaust-gas limitEPA Tier 4 final
Battery Cold-start current CCA650 A
ManufacturerKohler
Fuel consumption (Prime load)1.1 GPH US
Run Time (Prime Load)54.7 hrs
Shipping weight with Trailer1,719.6 lb
Length for shipping (with Trailer)87.5 "
Width for shipping (with Trailer)58.2 "
Height for shipping (with Trailer)64.1 "
