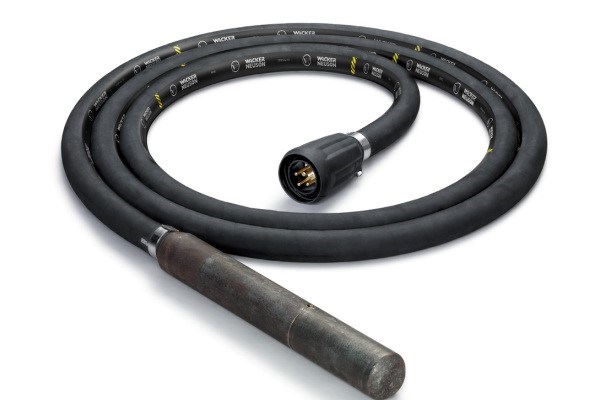

Wacker Neuson IRflex58/120/15

Double tap to zoom



Features

Switch box with integrated frequency converter

  • The integrated frequency converter means no additional machine is necessary. The compact unit is easy for the operator to transport around the construction site.



QUALITY

Completely tempered vibrator head

  • The vibrator head is fully tempered. This makes the head particularly sturdy and prevents quick wear.



MAINTENANCE

Modular system

  • The modular structure allows the machine to be configured appropriately for every application.
  • Only one drive unit is required in order to use internal vibrators in different sizes. This allows saving costs on acquisition and maintenance.

Specifications

Model Variations IRflex58/120/15
Nominal Current 3.3 A 3.3 A
Nominal Voltage 220 V 220 V
Nominal Frequency 200 Hz 200 Hz
Nominal Power (P) 1.05 KW 1.05 KW
Phase 3 ~ 3 ~
Head diameter/- diagonal 2.3 " 58 mm
Length Hose 49.2 Foot 15 m
Weight 55.34 lb 25.1 kg
Rubber cap no
Length Cable Asynchronous motor
Kind of plug Quickflex
Protection class I / Protective earthing
Degree of protection IP67
