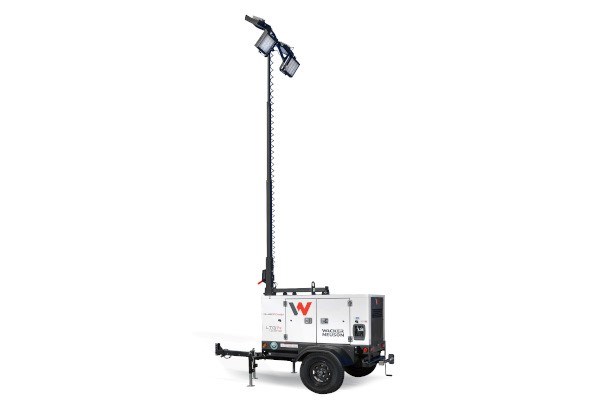

Wacker Neuson LTG14

Double tap to zoom



Features

LED Lights

  • Rated to last the life of the machine, the durable LED lights eliminate frequent bulb replacement expense, reducing the total cost of ownership
  • Four 320 Watt LED lights provide a total of 192,000 Lumens instantaneously and increase uptime by eliminating warm-up and cool-down periods
  • Efficient LED lights extend the machine's run time and reducing overall operating costs



Power Mast

  • Electric winch raises and lowers the mast with the push of button.
  • Mast can be rotated manually 360°, raised or lowered.



Transportation Versatility

  • Foldable tongue minimizes the machine footprint for efficient shipping and storage
  • Wide axle on trailer provides stability on rough roads
  • Single point lifting eye for easy maneuverability



Programmable Controller

  • Easy to use controller
  • Allows for customizable start up and shut downs as well as monitors fuel usage and alarms when fuel is low
  • Heated display for cold weather conditions



Serviceability

  • Removable doors make maintenance quick and easy.
  • Control panel door swings open for easy access to AVR and wiring.
  • 2 year / unlimited hour machine warranty | 4 year / 4,000 hour Kohler engine warranty.



MORE FEATURES

Efficiency

Fuel Tank and Containment

  • 110% fluid containment protects the environment in the event of engine fluid or fuel tank leaks.
  • light weight, polymer fuel tank is rust proof and easier to tow and transport.
  • CSA certified for Canadian applications.

Specifications

Model VariationsLTG14
Length136 " 3,454 mm
Width76.1 " 1,934 mm
Height78.4 " 1,991 mm
Operating weight2,766.8 lb 1,255 kg
Mast height max.23.6 Foot 7.2 m
Output frequency60 Hz 60 Hz
Generator ManufacturerMecc Alte
Motor typeDiesel engine
Cylinder3
Fuel typeWinter Blend Diesel No. 2
Operating Engine speed1,800 1/min 1,800 1/min
Exhaust-gas limitEPA Tier 4 final
ManufacturerKohler
Lighting appliances320W (LED)
Bulb power320 W 320 W
Fuel consumption (Lights only)0.2 GPH US 0.6 L/hr
Run Time (Lights only)359.5 hrs 359.5 hrs
Illuminance5 fc 54 Lux
Coverage area9,580 ft2 890 m2
