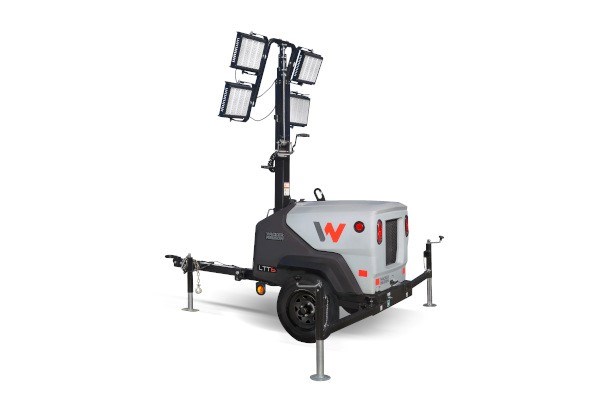

Wacker Neuson LTT6

Double tap to zoom



Features

LED Lights

  • Rated to last the life of the machine, the durable LED lights eliminate frequent bulb replacement expense, reducing the total cost of ownership
  • Four 320 Watt LED lights provide a total of 192,000 Lumens instantaneously and increase uptime by eliminating warm-up and cool-down periods
  • Efficient LED lights extend the machine's run time and reducing overall operating costs



Programmable Controller

  • Easy to use controller
  • Allows for customizable start up and shut downs as well as monitors fuel usage and alarms when fuel is low
  • Heated display for cold weather conditions



Compact Design

  • Foldable tongue minimizes the machine footprint for shipping and storage
  • Fork pockets and lifting eye make it easy to load, unload, and place machine
  • Compact design allows for 22 machines to fit on a 48 ft trailer and 24 machines on a 53 ft. trailer



Standard Auxiliary Power

  • 2700 Watts to 4700 Watts auxiliary power allows for the use of power tools and other equipment while the lights are running



Telescopic Vertical Mast

  • The compact telescopic vertical mast design reduces storage and transportation area, improving logistics efficiencies.
  • Manual, dual handle winch enables quick raising and lowering of mast.



MORE FEATURES

Maintenance

Extended 1,000 Hour Service Interval

  • 1,000 hour oil change interval means more time working and less time servicing, reducing total cost ownership.

Specifications

Model VariationsLTT6
Length100.9 " 2,563 mm
Width47.5 " 1,207 mm
Height100.3 " 2,548 mm
Operating weight1,554.3 lb 705 kg
Mast height max.23 Foot 7 m
Output frequency60 Hz 60 Hz
Generator Rating 1~ (Continuous)6 KW 6 KW
Generator ManufacturerMecc Alte
Motor typeDiesel engine
Cylinder3
Cylinder capacity62.7 Inch3 1,028 cm3
Fuel typeWinter Blend Diesel No. 2
Tank capacity52.4 gal US 198.4 l
Effective power11.3 hp 8.4 KW
Operating Engine speed1,800 1/min 1,800 1/min
Exhaust-gas limitEPA Tier 4 final
ManufacturerKohler
Lighting appliances320W (LED)
Bulb power320 W 320 W
Fuel consumption (Lights only)0.3 GPH US 1.1 L/hr
Run Time (Lights only)173.4 hrs 173.4 hrs
