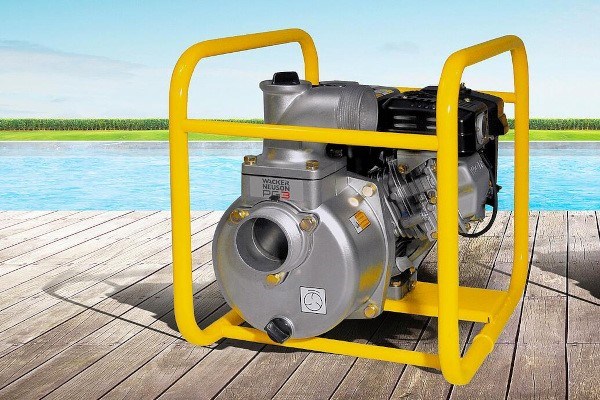

Wacker Neuson PG3A

Double tap to zoom

Pump out vanes on back of impeller.

Pump out vanes on back of impeller reduce debris accumulation and downtime while allowing greater productivity.

Cast iron impeller and volute for long life and minimal service

Cast iron impeller and volute are wear resistant for long life and minimal service.

Carbon ceramic mechanical seal.

Carbon ceramic mechanical seal with reliable four-cycle engine with low oil shutdown increases operating life.

MORE FEATURES

COMFORT

Lightweight cast aluminum housing

High strength lightweight die cast aluminum housing increases the years of trouble-free pump life. A heavy duty protective frame provides convenient carrying handles while adding extra protection for the pump.

Model Variations	PG3A
Operating Engine speed	3,600 1/min
Fuel consumption at full power	0.5 GPH US
Flow rate max.	264.2 gal/mi
Solid diameter max.	0.3 "
Suction head max.	24.6 Foot
Delivery height max.	98.4 Foot
Length	20.3 "
Width	15.9 "
Height	18.1 "
Operating weight	68.3 lb
Intake-/Pressure socket-dia.	3 "
Motor type	Gasoline engine
Cylinder	1
Cylinder capacity	9.9 in³
Fuel type	Gasoline
Fuel consumption	0.5 GPH US
Tank capacity	1 gal US
Oil filling max.	0.2 gal US
Power rating max.	4.8 hp
Engine speed (Power max.)	3,600 1/min
Standard (Operating power)
Manufacturer	Honda
Running time at 100%	2.1 hrs
